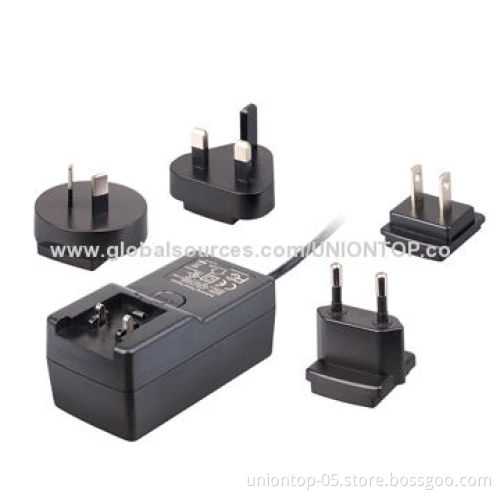

15w multi-angle conversion pin power adapter for LED lighting with CE, CB, FCC

15w multi-angle conversion pin power adapter for LED lighting with CE, CB, FCC

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Output voltages: 8V, 0.75A adapter
Approvals: UL, CE, FCC, LVD, GS and C-tick
1 year warranty
With US,UK, AU, SF, CN and EURO plug
Good-quality, high-speed and reasonable price power adaptor
Hot selling, widely used, popular, apply to all over the world

Applications:

The power supply, power adaptor, adapter, AC DC adapter are widely used for phone, POS machine, household appliances, electronic devices, medical equipment, massage chair

Parameters:

Input:
- Voltage range: 100-240VAC
- Frequency range: 50-60Hz
- Current: 0.48A maximum
Output:
- Load regulation: 5% typical
- Ripple: 1-2%P-P maximum for output voltage and full load
- Transit response: 0.5mS for 50% load change typical
- Holdup time: 10ms full load
- Protection: short-circuit/over-voltage/over-current protection
- DC cord: 18/20/22AWG

Electronic:

Topology: switching fly-back
Hi-Pot withstand: 3,000V AC primary-secondary
Leakage current: 0.25mA@2-pin
Efficiency: meet CEC and energy star
EMI conduction and radiation: Compliance to EN55022 Class B
Harmonic current: compliance to EN61000-3-2,3
EMS immunity: compliance to EN61000-4-2,3.4,5,6,8,11
MTBF: 50,000 calculated hours at 25, by ML-HDBK-217F

Output voltages: 8V, 0.75A adapter

Approvals: UL, CE, FCC, LVD, GS and C-tick

1 year warranty

With US,UK, AU, SF, CN and EURO plug

Good-quality, high-speed and reasonable price power adaptor

Hot selling, widely used, popular, apply to all over the world

The power supply, power adaptor, adapter, AC DC adapter are widely used for phone, POS machine, household appliances, electronic devices, medical equipment, massage chair
