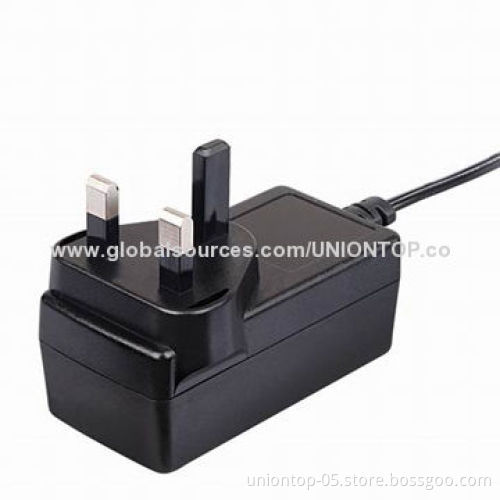

CE RoHS UL Certified 12V, 1A, 12V, 1.5A Power Supply with UK Plug
  • CE RoHS UL Certified 12V, 1A, 12V, 1.5A Power Supply with UK Plug
  • CE RoHS UL Certified 12V, 1A, 12V, 1.5A Power Supply with UK Plug
  • CE RoHS UL Certified 12V, 1A, 12V, 1.5A Power Supply with UK Plug
  • CE RoHS UL Certified 12V, 1A, 12V, 1.5A Power Supply with UK Plug
  • CE RoHS UL Certified 12V, 1A, 12V, 1.5A Power Supply with UK Plug
CE RoHS UL Certified 12V, 1A, 12V, 1.5A Power Supply with UK Plug
CE RoHS UL Certified 12V, 1A, 12V, 1.5A Power Supply with UK Plug
CE RoHS UL Certified 12V, 1A, 12V, 1.5A Power Supply with UK Plug
CE RoHS UL Certified 12V, 1A, 12V, 1.5A Power Supply with UK Plug
CE RoHS UL Certified 12V, 1A, 12V, 1.5A Power Supply with UK Plug

CE RoHS UL Certified 12V, 1A, 12V, 1.5A Power Supply with UK Plug

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Wide AC voltage input: 90V AC - 264V AC
    • Protections: short-circuit/over-current/over-voltage
    • Meets energy star level V (v2.0)
  • Electrical specifications:
    • Input voltage range: 90 - 240V AC
    • Input current: 500mA
    • Output voltage range: ±5%
    • Average efficiency: meets Energy Star Level V (v2.0)
    • MTBF: 50,000 hours at maximum load levels and an ambient temperature of 25°C (in correspondence with MIL-HDBK-217)
    • Low standby power: 0.3W
  • Environmental parameters:
    • Operating temperature: 0 - 40°C
    • Storage temperature: -20 - 60°C
    • Humidity: 5% to 95% RH (non-condensing)
  • Safety approval: cUL US (ITE UL60950 and medical UL60601), TUV-GS (ITE EN60950 and medical EN60601, LED EN61347), CE, PSE, C-Tick CCC (ITE GB4943)
  • Dimensions: 82mm (L) x 40mm (W) x 34.3mm (H)
  • Applications: ITE equipment medical device, lamp
  • Wide AC voltage input: 90V AC - 264V AC
  • Protections: short-circuit/over-current/over-voltage
  • Meets energy star level V (v2.0)
  • Input voltage range: 90 - 240V AC
  • Input current: 500mA
  • Output voltage range: ±5%
  • Average efficiency: meets Energy Star Level V (v2.0)
  • MTBF: 50,000 hours at maximum load levels and an ambient temperature of 25°C (in correspondence with MIL-HDBK-217)
  • Low standby power: 0.3W
  • Operating temperature: 0 - 40°C
  • Storage temperature: -20 - 60°C
  • Humidity: 5% to 95% RH (non-condensing)
