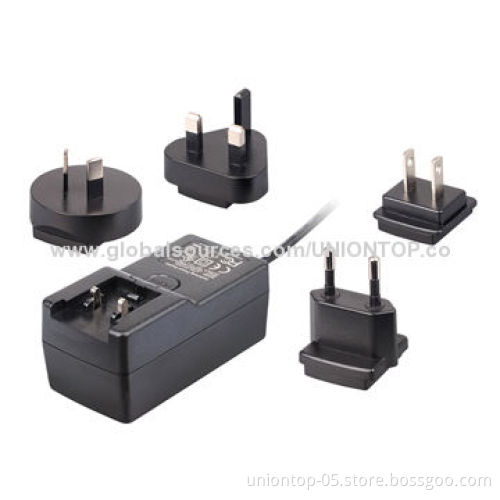

Hot new products for 2014 multinational power adapter
  • Hot new products for 2014 multinational power adapter
  • Hot new products for 2014 multinational power adapter
  • Hot new products for 2014 multinational power adapter
  • Hot new products for 2014 multinational power adapter
  • Hot new products for 2014 multinational power adapter
Hot new products for 2014 multinational power adapter
Hot new products for 2014 multinational power adapter
Hot new products for 2014 multinational power adapter
Hot new products for 2014 multinational power adapter
Hot new products for 2014 multinational power adapter

Hot new products for 2014 multinational power adapter

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Output voltage: 8V at 0.75A (adapter)
    • Certifications: UL, CE, FCC, LVD, GS and C-tick
    • 1-year warranty
    • With US, UK, AU, SF, CN and Euro plug
    • High speed
    • Hot selling, widely used, popular and apply to all over the world
  • Power supply, power adaptor, adapter and AC/DC adapter are also available
  • Applications:
    • Widely used for phone, POS machine, household appliances, electronic devices, medical equipment and massage chair
  • Parameters:
    • Input:
      • Voltages: 100 to 240V AC
      • Frequencies: 50 to 60Hz
      • Current: 0.48A (maximum)
    • Output:
      • Load regulation: 5% (typical)
      • Ripple: 1 to 2% p-p maximum for output voltage and full load
      • Transit response: 0.5ms for 50% load change (typical)
      • Holdup time: 10ms (full load)
      • Protection: short-circuit/overvoltage/overcurrent
      • DC cord: 18/20/22AWG
  • Electronic:
    • Topology: switching flyback
    • Hi-pot withstand: 3,000V AC primary-secondary
    • Leakage current: 0.25mA at 2-pin
    • Efficiency: meet CEC and Energy Star
    • EMI conduction and radiation: compliance to EN 55022 class B
    • Harmonic current: compliance to EN 61000-3-2, 3
    • EMS immunity: compliance to EN 61000-4-2, 3.4, 5, 6, 8, 11
    • MTBF: 50,000 calculated hours at 25, by ML-HDBK-217F
  • Output voltage: 8V at 0.75A (adapter)
  • Certifications: UL, CE, FCC, LVD, GS and C-tick
  • 1-year warranty
  • With US, UK, AU, SF, CN and Euro plug
  • High speed
  • Hot selling, widely used, popular and apply to all over the world
  • Widely used for phone, POS machine, household appliances, electronic devices, medical equipment and massage chair
  • Input:
    • Voltages: 100 to 240V AC
    • Frequencies: 50 to 60Hz
    • Current: 0.48A (maximum)
  • Output:
    • Load regulation: 5% (typical)
    • Ripple: 1 to 2% p-p maximum for output voltage and full load
    • Transit response: 0.5ms for 50% load change (typical)
    • Holdup time: 10ms (full load)
    • Protection: short-circuit/overvoltage/overcurrent
    • DC cord: 18/20/22AWG
  • Voltages: 100 to 240V AC
  • Frequencies: 50 to 60Hz
  • Current: 0.48A (maximum)
  • Load regulation: 5% (typical)
  • Ripple: 1 to 2% p-p maximum for output voltage and full load
  • Transit response: 0.5ms for 50% load change (typical)
  • Holdup time: 10ms (full load)
  • Protection: short-circuit/overvoltage/overcurrent
  • DC cord: 18/20/22AWG
  • Topology: switching flyback
  • Hi-pot withstand: 3,000V AC primary-secondary
  • Leakage current: 0.25mA at 2-pin
  • Efficiency: meet CEC and Energy Star
  • EMI conduction and radiation: compliance to EN 55022 class B
  • Harmonic current: compliance to EN 61000-3-2, 3
  • EMS immunity: compliance to EN 61000-4-2, 3.4, 5, 6, 8, 11
  • MTBF: 50,000 calculated hours at 25, by ML-HDBK-217F
