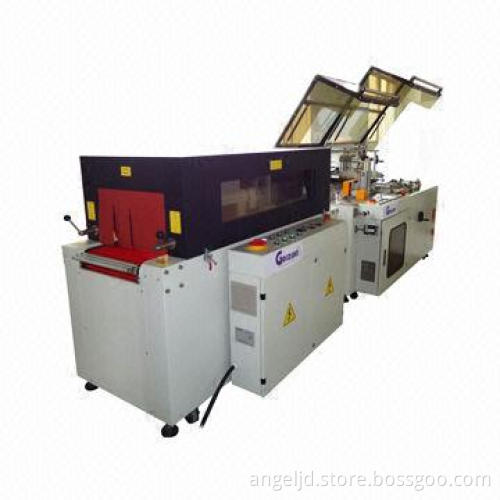

High-speed Side Sealing and Shrinking Packing Machine with 40-60 Pieces/min Packing Speed

High-speed Side Sealing and Shrinking Packing Machine with 40-60 Pieces/min Packing Speed

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Description:

High-speed side sealer detects product automatic withphotocells, optional feed type automatically and manually,available with center fold film to seal other three sidesaccomplish fully automatic shrink wrapping
Color touch operator interface accomplish all working allworking date easily, the panel with date memory for variousproducts allows quick changeovers by simply calling up the neededdate from the database
Error info shows on screen with auto inspection function makeeasier for operator to do emendation
Continuous side seal without product length limit
Able to increase logo locate function for printed film
Servo motor control cross seal system ensures accurate positionand perfect seal line, double pulling poles make seal blade stablefor long time operating
Constant temperature seal system use POF and other industryshrink film
Adjustable speed feeding system and free rolls storage tablerealize truly high-speed and unmanned operating
Optional products distribute system for different products
High-speed hot wind shrink tunnel adopts roll conveyor beltcovered hot proof silicone tube, each roller can be rotated,visible window shows shrink process in tunnel
Uniform temperature tunnel use PVC, POF and other differentshrink film
Inner insulate shell results into circle hot wind, adjustconvey speed to reach best shrink effect for different packagingrequest
Equipped fingers pushing conveyor or belt conveyor controlsequal distance among products to reach higher packing speed andbetter shrink effect

Specifications:

Machine dimensions (L x W x H): 2,040 x 1,480 x 1,300mm
Maximum packing size: L (mm) H <150 unlimited
Maximum packing size (W + H): d400mm
Cross sealing (L): 450mm
Packing speed: 40-60 pieces/minimum
Net weight: 800kg
Power: 3kW
Power supply: 1PH 110/220V, 50/60Hz
Air pressure (kg/cmsup): 6-8
Applicable film: POF
