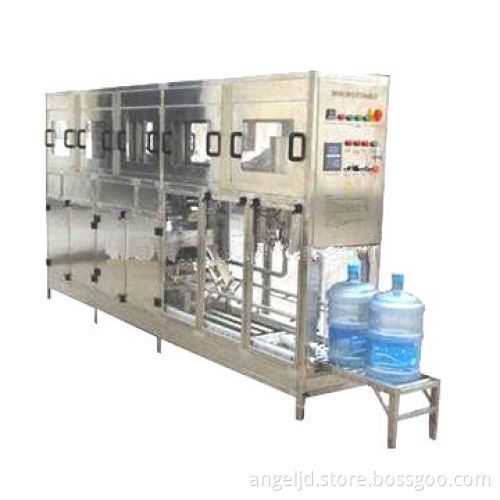

5-gallon Bottle Filling Machine for Pure Water with 60BPH Output

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Automatic break protection for power leakage andshort-circuit
Under pressure protection: when incoming air pressure≤0.5MPa, equipment will automatically stop
Water-shortage protection: when level of water tank lower thanthat of liquid switch, equipment will automatically stop

Specifications:

Output: 60BPH
Rated power: 2kW
Voltages: 220 to 380V AC
Frequencies: 50 to 60Hz
Air pressure: 0.5 to 0.6MPa
Bottle heads: 270 x 490 x 56mm
Cap size: 58 x 40 (18 x 7.5mm tail)
Overall dimensions: 2,710 x 500 x 1,600mm
Net weight: 190kg

Includes:

Washing heads: 1 x 3
Filling head: 1 x 1
Capping head: 1 x 1

Remarks: can add other functions as customers' requirements like hot tank heating washing, bottle external washing, cap washing, capacity note and man-machine control
