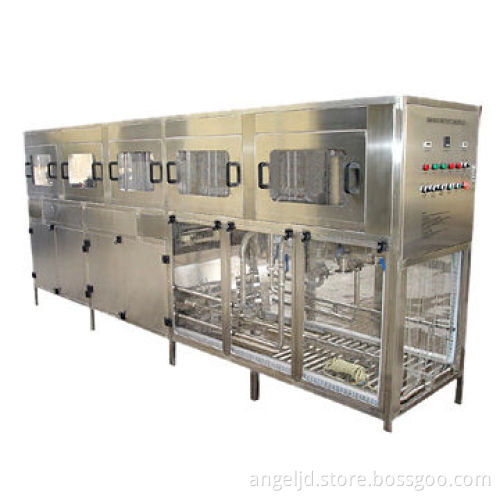

5-gallon Bottle Filling Machine for Pure Water, with 7.5kW Rated Input PowerNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Irrevocable L/C at Sight

Product Description

Rated input power: 7.5kW

Driving motor power: 0.55kW

Sterilize washing pump: 5.5kW

Pure water washing/filling pump: 1.1kW

Capping motor: 0.12kW

Ultraviolet sterilizing light: 40W

Power supplies: 240 and 110, 60/380 and 220V AC, 50Hz

Rated amperage: 46A

Capacity: 300 jars/hour

Jar capacity: 18.9 (5) or 11.3L (3 gallons)

Air pressure supply: 0.1m3, 0.17m3/minute and 0.7MPa/cm3

Water supply: 7.5m3/hour

Details for washing stations (with 6kW heaters in washing tanks): total of 5 washing stations (washing stations can customized)

Sterilized water for washing inside and outside of bottle

Pure water for washing inside and outside of bottle

Jar dimensions: 270 x 490 x 56 or 230 x 420 x 56mm

Cap dimensions: 58 x 40mm (with tip-in brush of 18mm in length and 7.5mm in width)

Dimensions: 4600 x 1000 x 1550mm

Net weight: 230kg

Certifications: CE, TÜV, CSA and UL

Remarks: inside and outside washing means the machine will wash the exterior and interior of bottles
