Blow-molding Machines with 45kN Clamping Force & 17.5W Power

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Features:

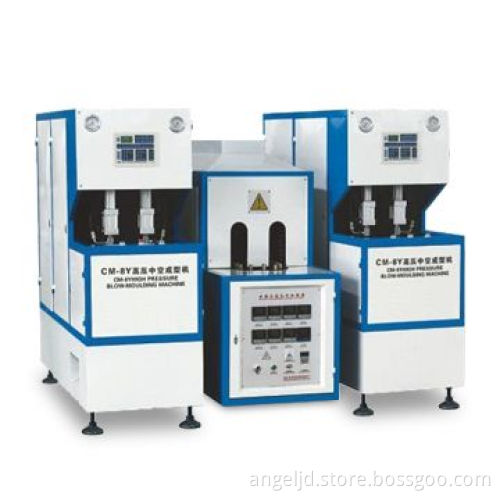

CM-8Y semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 0.1 to 2L
It is widely used to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle and more
Adopting double crank to adjust mold, heavy locking mold, stable and fast
Adopting infrared oven to heat the perform, the perform rotated and heated equally
The air system has been divided into two parts: pneumaticaction part and bottle blowing part to meet the different requirements for the action and blowing
It can provide sufficient and steady high pressure for blowing large irregular shaped bottles
Also equipped with muffler and oiling system to lubricate the mechanical part of the machine
Can be operated in the systematic mode and the semi-auto mode
Small with low investment, easy and safe for operating

Main parameters:

Product material: PET
Volume: 0.1 to 2L
Theoretical output: 1,400 to 1,800 pieces/h
Perform length: 350mm
Performs inner diameter: Φ5 to 38mm
Mold plate diameter (L x W): 350 x 380mm (maximum)
Mould thickness: 180mm (maximum)
Clamping force: 45kN
Mold opening stroke: 160mm
Main machine (L x W x H): 1,600 x 600 x 1,610cm
Main machine weight: 500kg
Heater (L x W x H): 1,870 x 630 x 1,450cm
Heater weight: 250kg
Power: 17.5kW

CM-8Y semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 0.1 to 2L

It is widely used to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle and more

Adopting double crank to adjust mold, heavy locking mold, stable and fast

Adopting infrared oven to heat the perform, the perform rotated and heated equally

The air system has been divided into two parts: pneumaticaction part and bottle blowing part to meet the different requirements for the action and blowing

It can provide sufficient and steady high pressure for blowing large irregular shaped bottles

Also equipped with muffler and oiling system to lubricate the mechanical part of the machine

Can be operated in the systematic mode and the semi-auto mode

Small with low investment, easy and safe for operating

Product material: PET

Volume: 0.1 to 2L

Theoretical output: 1,400 to 1,800 pieces/h

Perform length: 350mm

Performs inner diameter: Φ5 to 38mm

Mold plate diameter (L x W): 350 x 380mm (maximum)

Mould thickness: 180mm (maximum)

Clamping force: 45kN
