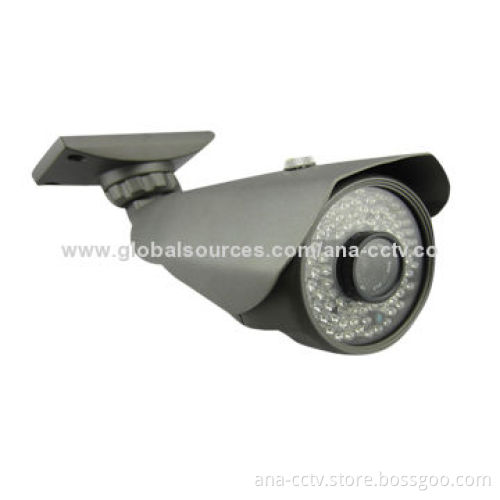

1/3-inch Sony CCD 700TVL 50m IR CCTV LED Camera, 1.0Vp-p, 75 Ohms Video Output

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Model number: ANA-SP5370
Effective pixels (H x V):
- NTSC: 768 x 494P
- PAL: 752 x 582P
Image sensor: color 1/3-inch Sony CCD
Horizontal resolution: 700TVL
Minimum illumination: 0.10 Lux/F1.2
S/N ratio: 48dB (AGC off)
Electronic shutter speed:
- PAL: 1/50-1/110,000 seconds
- NTSC: 1/60-1/100,000 seconds
Flickless mode: on/off
Automatic gain control: high/middle/low (6-40dB)
White balance: auto
Backlight compensation: BLC/HLC/off selectable
Motion detection: on/off (4-area, alarm output)
Privacy: on/off (8 areas)
Packing line: on/off
Day and night: color/black and white/EXT/auto (level adjustable)
Sync system: internal
Video output: 1.0Vp-p, 75 Ohms
OSD: optional
Mirror: on/off
DPC: available
Lens/focus: point 6mm varifocal
IR LEDs: 84 units 850nm infrared LED
IR viewing distance: 50 meters (subject to IR reflection conditions)
Weather protection: IP66
Power requirement (±10%): 12V DC, 700mA
Operating temperature: -20-55°C
Storage temperature: -30 -80°C

Features:

Sony's latest DSP program, the clearest original CCD
90 new gray belt bracket shell
Epistar, 84 pieces x Φ5 infrared lights, night vision distance 50-60m
Comes standard million HD IR 6mm focusable large lens
9-15V wide voltage input, constant current control circuit, low according to the program
700TVL OSD menu, wide dynamic light suppression, backlight compensation, lightning and other functions

Model number: ANA-SP5370

Effective pixels (H x V):
