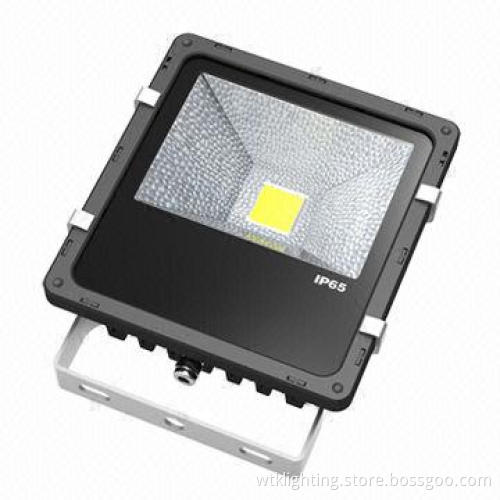

30W COB LED Floodlight, Bridgelux

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union

Product Description

Specifications:

LED light source: 20 x Cree XPE LED
LED luminous efficiency range: >95 or 110 to 130lm/W
Lamp total power: 30W
Power efficiency: 88% (Taiwan mean well LED driver)
Lamp rated luminous flux: 2850lm
Color rendering index: >70Ra
Color temperature: 2600 to 8000K
Beam angle: 120°
Light distribution curve (beam pattern): Asymmetric (bat wing)/rectangular beam
Input voltage: 90 to 295V AC
Frequency range: 47 to 63Hz
Power factor (PF): 0.9
Total harmonic distortion (THD): 10%
Storage temperature: -40 to 80°C
Working temperature: -40 to 50°C, 10 to 95%RH
Junction temperature (Tj): 60°C ±10% (ta: 25°C)
Light body and lampshade materials: aluminum alloy and ASA/PC
Working lifespan: 50,000 hours
Protection grade: IP65
Size: 21.5 x 17.8 x 8.1cm

Features:

More than 70% energy-saving
Adopting super brightness multiple chip LED lighting source which encapsulated by ourselves
Long lifespan, environmentally-friendly, high efficiency with no strobe, ghosting and UV or IR
Universal input voltage: 85 to 265/277/305V AC/10 to 28V DC
Light control and time-phase dimming, saving further energy
Reliable and stable
Automatically reduce current against overheating temperature
Unique optical design and rectangular beam
Suitable for roadway illumination

Applications:

Applicable for buildings, factories, storage rooms, public parking lots, exhibition buildings, domestic blocks, gymnasiums, gas stations, squares, advertisers, lawns and supermarket wharfs
Garden and other lighting places

Packing:

Carton sizes: 26 x 23.6 x 12.4 (1 piece) and 63.5 x 49 x 55cm (20 pieces)
Net weight: 1.45kg
Gross weight: 1.65kg

LED light source: 20 x Cree XPE LED

LED luminous efficiency range: >95 or 110 to 130lm/W

Lamp total power: 30W

Power efficiency: 88% (Taiwan mean well LED driver)

Lamp rated luminous flux: 2850lm

Color rendering index: >70Ra

Color temperature: 2600 to 8000K

Beam angle: 120°

Light distribution curve (beam pattern): Asymmetric (bat wing)/rectangular beam

Input voltage: 90 to 295V AC

Frequency range: 47 to 63Hz

Power factor (PF): 0.9

Total harmonic distortion (THD): 10%

Storage temperature: -40 to 80°C

Working temperature: -40 to 50°C, 10 to 95%RH

Junction temperature (Tj): 60°C ±10% (ta: 25°C)

Light body and lampshade materials: aluminum alloy and ASA/PC

Working lifespan: 50,000 hours

Protection grade: IP65

Size: 21.5 x 17.8 x 8.1cm

More than 70% energy-saving

Adopting super brightness multiple chip LED lighting source which encapsulated by ourselves

Long lifespan, environmentally-friendly, high efficiency with no strobe, ghosting and UV or IR

Universal input voltage: 85 to 265/277/305V AC/10 to 28V DC

Light control and time-phase dimming, saving further energy

Reliable and stable

Automatically reduce current against overheating temperature

Unique optical design and rectangular beam

Suitable for roadway illumination

Applicable for buildings, factories, storage rooms, public parking lots, exhibition buildings, domestic blocks, gymnasiums, gas stations, squares, advertisers, lawns and supermarket wharfs

Garden and other lighting places

Carton sizes: 26 x 23.6 x 12.4 (1 piece) and 63.5 x 49 x 55cm (20 pieces)

Net weight: 1.45kg

Gross weight: 1.65kg
