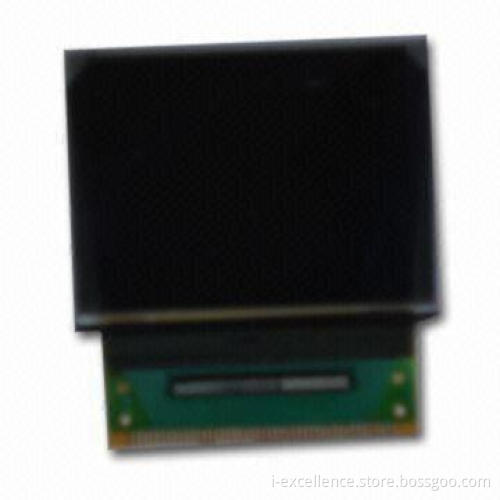

Mobile Phone LCD with 160 x 128-pixel Module Panel Resolution, Comes in 262 and 65K Colors
  • Mobile Phone LCD with 160 x 128-pixel Module Panel Resolution, Comes in 262 and 65K Colors
Mobile Phone LCD with 160 x 128-pixel Module Panel Resolution, Comes in 262 and 65K Colors

Mobile Phone LCD with 160 x 128-pixel Module Panel Resolution, Comes in 262 and 65K Colors

Payment Type:
30% Deposit, 70% T/T Before Shipment
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: 30% Deposit, 70% T/T Before Shipment
Product Description
Product Description
  • Small molecular organic light emitting diode
  • Colors: 262 and 65K
  • Panel resolutions: 160 x 128 dots
  • Driver IC: SSD1353
  • Excellent quick response time: 10μs
  • Extremely thin thickness for best mechanism design: 2.025mm
  • High contrast: 2,000:1
  • Wide viewing angle: 160°
  • Strong environment-resistance
  • 8/9/16/18 bits 6,800/8,080 series parallel interface, serial peripheral interface
  • Wide range of operating temperature: -40 to 70°C
  • Anti-glare polarizes
  • Mechanical data:
    • Dot matrix: 160 x 3 x 128 dots
    • Dot dimensions: 0.048 x 0.199mm2
    • Dot pitch dimensions: 0.073 x 0.219mm2
    • Aperture rate: 60%
    • Active area dimensions: 35.015 x 28.012mm2
    • Panel dimensions: 42.7 x 33.4mm2
    • Panel thickness: 2.025 ±0.1mm
    • Module dimensions: 42.7 x 47.5 x 2.025mm3
    • Diagonal A/A size: 1.8 inches
    • Module weight: 5.84 ±10%g
