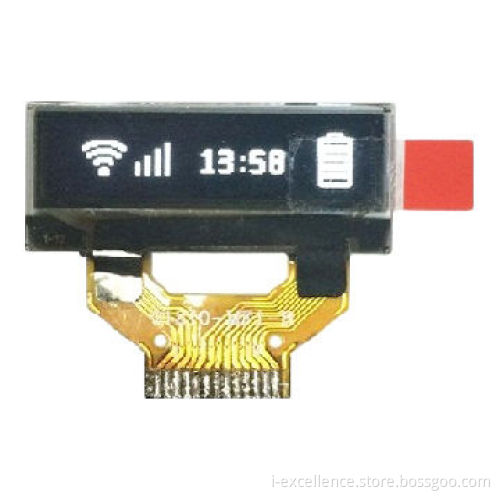

0.88-inch wearable OLED display module with 128*32 dotmatrix and white color

Get Latest Price

Payment Type:: 30% Deposit and 70% T/T Before Shipment

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	30% Deposit and 70% T/T Before Shipment

Product Description

Overview:

This is a monochrome OLED display module with 128×32 dot matrix
Characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption

Features:

Display color: white
Dot matrix: 128×32
Driver IC: SSD1306BZ
Interface: I2C
Wide range of operating temperatures: -40℃ to 70℃

Mechanical data:

Dot matrix: 128 (W) x 32 (H)
Dot size: 0.15 (W) x 0.135 (H) mm²
Dot pitch: 0.17 (W) x 0.155 (H) mm²
Aperture rate: 77%
Active area: 21.74 (W) x 4.94 (H) mm²
Panel size: 25.5 (W) x 10.6(H) x 1.05(T) mm³
Module size: 25.5 (W) x 20.9(H) x 1.28(T) mm³
Diagonal A/A size: 0.88 inch
Module weight: 0.66±10% gram

This is a monochrome OLED display module with 128×32 dot matrix

Characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption

Display color: white

Dot matrix: 128×32

Driver IC: SSD1306BZ

Interface: I2C

Wide range of operating temperatures: -40℃ to 70℃

Dot matrix: 128 (W) x 32 (H)

Dot size: 0.15 (W) x 0.135 (H) mm²

Dot pitch: 0.17 (W) x 0.155 (H) mm²

Aperture rate: 77%

Active area: 21.74 (W) x 4.94 (H) mm²

Panel size: 25.5 (W) x 10.6(H) x 1.05(T) mm³

Module size: 25.5 (W) x 20.9(H) x 1.28(T) mm³
