433mhz wireless transmitter and receiver RF moduleS YET211

Get Latest Price

Payment Type:: PayPal, Western Union or T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, Western Union or T/T

Product Description

Transmission through RF is better than IR (infrared) because ofmany reasons. Firstly, signals through RF can travel through largerdistances making it suitable for long range applications. Also,while IR mostly operates in line-of-sight mode, RF signals cantravel even when there is an obstruction between transmitter &receiver. Next, RF transmission is more strong and reliable than IRtransmission. RF communication uses a specific frequency unlike IRsignals which are affected by other IR emitting sources.

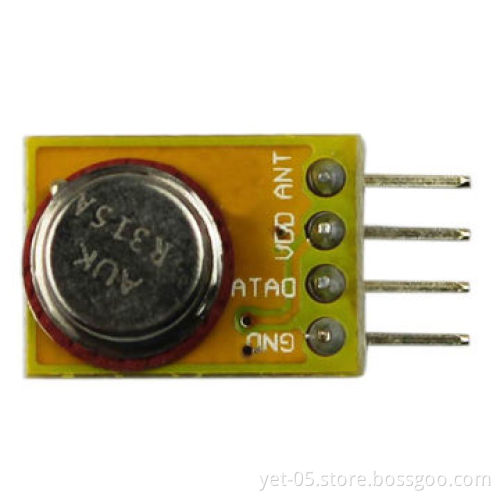

This RF module comprises of an RF Transmitter and an RFReceiver. The transmitter/receiver (Tx/Rx) pair operates at afrequency of 434 MHz. An RF transmitter receives serial data andtransmits it wirelessly through RF through its antenna connected atpin4. The transmission occurs at the rate of 1Kbps - 10Kbps.Thetransmitted data is received by an RF receiver operating at thesame frequency as that of the transmitter.

Technical Data

receiving sensitivity

-103dBm

working frequency

315 MHz; 433.92 MHz

power supply

3.3V5.5V

Low power consumption

5.0V @ 433.92MHZ,3.84.1mA

5.0V @ 315 MHZ,2.52.8mA

sustained data rate

2.4kbps.
