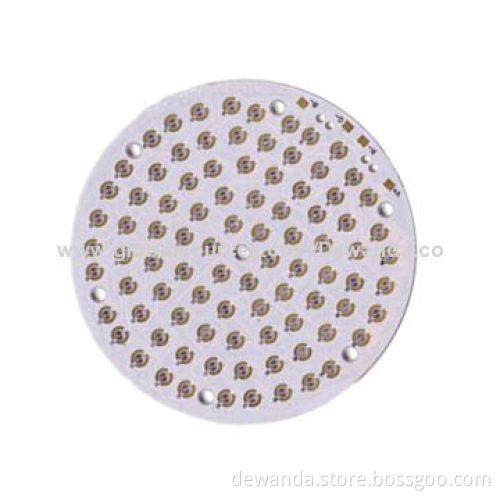

One layer aluminum substrate PCB

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Board thickness: 0.8mm

Layers: 1

Minimum line width/spacing: 4mil

Minimum hole diameter: 0.3mm

Finish copper thickness: 1oz

Solder mask: black

Minimum line width/spacing: 0.075/0.075mm

Minimum soldermask dam: 0.075mm

Minimum and maximum board thicknesses: 0.2-3.5mm

Maximum finish copper thicknesses: 0.5-3 oz

Maximum layers count: 8

Impedance control: ±8%
