Industrial Mini-ITX Motherboard, Onboard 1037U CPU/2xGLAN/10xCOM/2 x VGA/HDMI/12V DC In

Industrial Mini-ITX Motherboard, Onboard 1037U CPU/2xGLAN/10xCOM/2 x VGA/HDMI/12V DC In

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

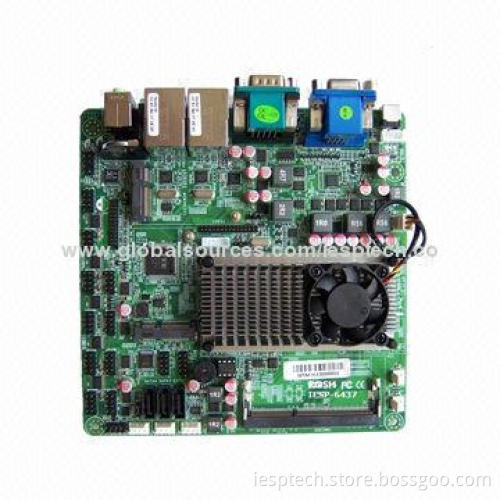

IESP-6437(2GLAN/10C/8U)

MINI-ITX Industrial CPU Board

System:

Processor: Onboard Intel Celeron 1037U Dual-core 1.8GHz CPU
Chipset: NM70 chipset
Memory: 1 x 204pin DDR3 SO-DIMM, maximum up to 8GB
BIOS: AMI 16M BIOS, ACPI supported
Watch dog timer: 1-65535 seconds/minute

Display:

Graphics Core: Integrated HD Graphics display core
Display memory: DVMT dynamic video memory
Display interface: LVDS, 2xVGA, HDMI
Dual-Display: supported

Ethernet:

Network: Realtek RTL8111EL Gigabit LAN controller
Network interface: 2 x RJ45 GLAN
Audio:
Codec: Realtek ALC662 HD audio
Audio interface: line-out, mic-in

Storage interface:

SATA: 3 x SATA

I/O interface (embedded):

GPIO: 8-channel programmable digital I/O
Power: 1 x 4-PIN DC in interface
LVDS: 1 x LVDS 18/24 bit, single channel
USB: 4 x USB2.0
COM: 9x RS-232
Parallel port: 1 x parallel port
Mini SATA: 1 x mini SATA
Mini PCI-e: 1 x mini PCI-e

I/O interface (rear):

Power: 1 x power in interface
VGA: 2 x VGA
HDMI: 1 x HDMI
USB: 4 x USB2.0
LAN: 2 x RJ45
COM: 1x COM RS-232
Audio: 1 x audio (line-out and mic in)

Other features:

Power supply: 12V DC in
Operating temperature: -20-60°C
Storage temperature: -40-80°C
Relative humidity: 0-95% RH, non-condensing
Dimensions: 170 x 170mm

Processor: Onboard Intel Celeron 1037U Dual-core 1.8GHz CPU

Chipset: NM70 chipset

Memory: 1 x 204pin DDR3 SO-DIMM, maximum up to 8GB

BIOS: AMI 16M BIOS, ACPI supported

Watch dog timer: 1-65535 seconds/minute

Graphics Core: Integrated HD Graphics display core

Display memory: DVMT dynamic video memory

Display interface: LVDS, 2xVGA, HDMI

Dual-Display: supported

Network: Realtek RTL8111EL Gigabit LAN controller

Network interface: 2 x RJ45 GLAN

Audio:

Codec: Realtek ALC662 HD audio

Audio interface: line-out, mic-in

SATA: 3 x SATA

GPIO: 8-channel programmable digital I/O

Power: 1 x 4-PIN DC in interface

LVDS: 1 x LVDS 18/24 bit, single channel

USB: 4 x USB2.0

COM: 9x RS-232

Parallel port: 1 x parallel port

Mini SATA: 1 x mini SATA

Mini PCI-e: 1 x mini PCI-e

Power: 1 x power in interface

VGA: 2 x VGA

HDMI: 1 x HDMI

USB: 4 x USB2.0

LAN: 2 x RJ45

COM: 1x COM RS-232

Audio: 1 x audio (line-out and mic in)

Power supply: 12V DC in

Operating temperature: -20-60°C

Storage temperature: -40-80°C

Relative humidity: 0-95% RH, non-condensing

Dimensions: 170 x 170mm
