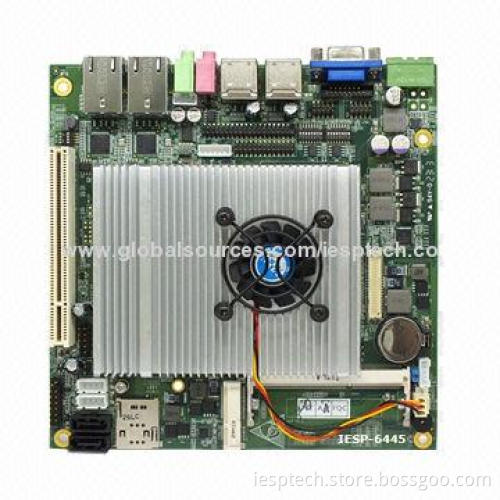

Industrial Mini-ITX Motherboard, Onboard P7550 CPU/DDR3/2GLAN/6COM/8USB/VGA/LVDS/Audio/12-24V DC In

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

IESP-6445(2GLAN/6C/6U)

MINI-ITX Industrial CPU Board

System:

Processor: Onboard INTEL Core 2 Duo P7550 CPU
Chipset: Intel GM45+ ICH9M chipset
Memory: 1 x 204pin DDR3 SO-DIMM, maximum up to 4GB
BIOS: AMI 8MB BIOS, ACPI supported
Watch dog timer: 1-65535 seconds/minute

Display:

Graphics core: Integrated GMAX4500M HD display core
Display memory: DVMT dynamic video memory
Display interface: VGA, 1 x LVDS
Dual-display: supported

Ethernet:

Network chip: Gigabit LAN controller
Network interface: 2 x RJ45 GLAN

Audio:

Codec: Realtek HD audio
Audio interface: line-out, line-in, mic-in

Storage interface:

SATA: 3 x SATAII, 1 x mini SATA

I/O interface (embedded):

PCI: 1 x PCI slot
LVDS: 1 x LVDS 18/24 bit
USB: 2 x USB2.0
COM: 6 x RS-232
LPT: 1 x LPT
PS/2: 1 x PS/2
Mini SATA: 1 x mini SATA

I/O interface (rear):

Power: 1 x power in interface
Audio: 1 x line out
Audio: 1 x mic in
VGA: 1 x VGA
USB: 4 x USB2.0
LAN: 2 x RG45

Other features:

Power supply: 12-24 V DC in
Operating temperature: -20-60°C
Storage temperature: -40-80°C
Relative humidity: 0-95% RH, non-condensing
Dimensions: 170 x 170mm

Processor: Onboard INTEL Core 2 Duo P7550 CPU

Chipset: Intel GM45+ ICH9M chipset

Memory: 1 x 204pin DDR3 SO-DIMM, maximum up to 4GB

BIOS: AMI 8MB BIOS, ACPI supported

Watch dog timer: 1-65535 seconds/minute

Graphics core: Integrated GMAX4500M HD display core

Display memory: DVMT dynamic video memory

Display interface: VGA, 1 x LVDS

Dual-display: supported

Network chip: Gigabit LAN controller

Network interface: 2 x RJ45 GLAN

Codec: Realtek HD audio

Audio interface: line-out, line-in, mic-in

SATA: 3 x SATAII, 1 x mini SATA

PCI: 1 x PCI slot

LVDS: 1 x LVDS 18/24 bit

USB: 2 x USB2.0

COM: 6 x RS-232

LPT: 1 x LPT

PS/2: 1 x PS/2

Mini SATA: 1 x mini SATA

Power: 1 x power in interface

Audio: 1 x line out

Audio: 1 x mic in

VGA: 1 x VGA

USB: 4 x USB2.0

LAN: 2 x RG45

Power supply: 12-24 V DC in

Operating temperature: -20-60°C

Storage temperature: -40-80°C

Relative humidity: 0-95% RH, non-condensing

Dimensions: 170 x 170mm
