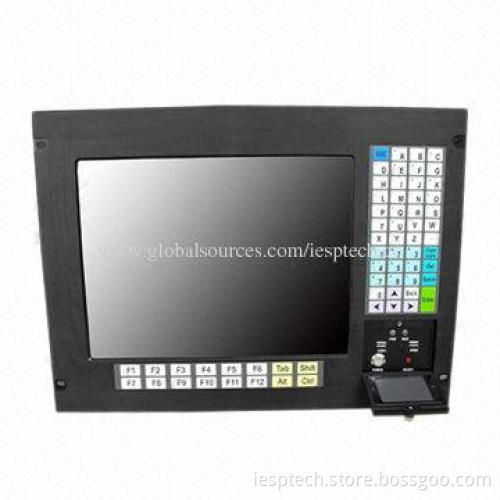

Rack Mount Industrial Panel PC, 15" LCD Touchscreen/Keyboard, D2550 CPU/2GB/320GB/6COM/6USB

Rack Mount Industrial Panel PC, 15" LCD Touchscreen/Keyboard, D2550 CPU/2GB/320GB/6COM/6USB

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Mechanical:

Front panel: aluminum panel, meet with NEMA4 IP65
Chassis: heavy steel
Dimensions: (W) 482.6 x (H) 310 x (D) 133mm
Mounting: rack
Color: matt black
Weight: about 8kg

System data:

CPU: Intel Atom D2550 1.86GHz/1MB
Chipset: Intel® NM10
BIOS: AMI BIOS, supports ACPI
Watchdog: programmable counter from 1 to 255
Graphic: Intel GMA3650
Memory capacity: 2GB DDR3 system memory
Storage: 320GB 2.5" HDD (2.5" SSD (optional))
Expansion: 1 x mini-PCIe slot and 2 x PCI (optional)
Operating system: Microsoft Windows XP/7

LCD:

Display: 15-inch TFT
Aspect ratio: 4:3
Resolution: 1024 x 768p
Luminance: 300cd/m²
Contrast ratio: 1500:1
Backlight: LED
Colors: 16.2M colors

Touch screen:

Interface: USB
Light transmission: 80%
Type: 5-wire resistive touch screen

Cooling system:

Cooling mode: fanless design

Keyboard: 1 x full function membrane keyboard

Mouse: 1 x touchpad

Front I/O, LED and button:

USB: 2 x USB
LDES: 1 x HDD LED and 1 x power LED
Button: 1 x ATX power button and 1 x reset button

Rear I/O:

Ethernet: 1 x RJ-45 (RTL8105E-VL Ethernet Controller)
VGA: 1 x VGA
DVI: 1 x DVI
Audio: 1 x audio (line-out)
USB: 4 x USB 2.0
Serial port: 2 x RS232
Power-in: 1 x DC-in Phoenix Terminal, 1 x DC jack

Power supply:

System power requirement: +12V DC (power input)
Power adapter:
- Input: 100 to 250V AC at 47 to 63Hz
- Output: 72W adapter (12V at 6A)

Environmental:

Operating temperature: 0 to 60°C (32 to 140°F)
Relative humidity: 0 to 90%, non-condensing
Storage temperature: -20 to 70°C (-4 to 158°F)

Optional:

Serial port: maximum up to 6 x COM
USB port: maximum up to 6 x USB
Optional Wi-Fi
Customized chassis colors and logos are accepted

Front panel: aluminum panel, meet with NEMA4 IP65

Chassis: heavy steel

Dimensions: (W) 482.6 x (H) 310 x (D) 133mm

Mounting: rack

Color: matt black

Weight: about 8kg

CPU: Intel Atom D2550 1.86GHz/1MB

Chipset: Intel® NM10

BIOS: AMI BIOS, supports ACPI

Watchdog: programmable counter from 1 to 255

Graphic: Intel GMA3650

Memory capacity: 2GB DDR3 system memory

Storage: 320GB 2.5" HDD (2.5" SSD (optional))

Expansion: 1 x mini-PCIe slot and 2 x PCI (optional)

Operating system: Microsoft Windows XP/7

Display: 15-inch TFT

Aspect ratio: 4:3

Resolution: 1024 x 768p

Luminance: 300cd/m²

Contrast ratio: 1500:1

Backlight: LED

Colors: 16.2M colors

Interface: USB

Light transmission: 80%

Type: 5-wire resistive touch screen

Cooling mode: fanless design

USB: 2 x USB

LDES: 1 x HDD LED and 1 x power LED

Button: 1 x ATX power button and 1 x reset button

Ethernet: 1 x RJ-45 (RTL8105E-VL Ethernet Controller)

VGA: 1 x VGA

DVI: 1 x DVI

Audio: 1 x audio (line-out)

USB: 4 x USB 2.0

Serial port: 2 x RS232

Power-in: 1 x DC-in Phoenix Terminal, 1 x DC jack

System power requirement: +12V DC (power input)

Power adapter:

Input: 100 to 250V AC at 47 to 63Hz
Output: 72W adapter (12V at 6A)

Input: 100 to 250V AC at 47 to 63Hz

Output: 72W adapter (12V at 6A)

Operating temperature: 0 to 60°C (32 to 140°F)

Relative humidity: 0 to 90%, non-condensing

Storage temperature: -20 to 70°C (-4 to 158°F)

Serial port: maximum up to 6 x COM

USB port: maximum up to 6 x USB

Optional Wi-Fi

Customized chassis colors and logos are accepted
