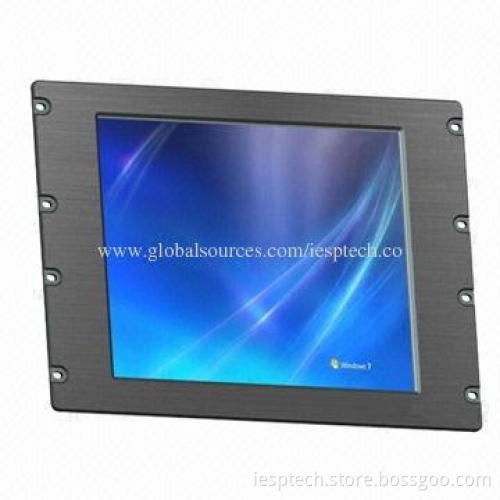

Industrial Panel PC, Rack Mount, 15" LCD w/ Touchscreen, D2550 CPU/2GB Memory/320GB HDD, All-in-one

Industrial Panel PC, Rack Mount, 15" LCD w/ Touchscreen, D2550 CPU/2GB Memory/320GB HDD, All-in-one

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

IESP-5215-D2550: 15" industrial panel system

Mechanical:

Front panel: aluminum panel, meet with NEMA4 IP65
Chassis: heavy steel chassis
Dimensions (W x H x D): 482.6mm x 310mm x 133mm
Mounting: rack mounting
Color: matte black
Weight: about 8kgs

System data:

CPU: Intel Atom D2550 1.86GHz/1MB CPU
Chipset: Intel® NM10 chipset
BIOS: AMI BIOS, support ACPI
Watchdog: programmable counter from 1 - 255
Graphic: Intel GMA3650, shared system memory
Memory: 2GB DDR3 system memory
Storage: 320GB 2.5" HDD (2.5" SSD optional)
Expansion: 1 x mini-PCIe slot, 1 x mini-SATA, 2 x PCI optional
System: Windows XP and 7

LCD:

LCD size: 15" TFT LCD
Aspect ratio: 4:3
Resolution: 1024 x 768P
Luminance: 300cd/m²
Contrast ratio: 1500:1
Backlight: LED
Colors: 16.2M colors

Touchscreen:

Interface: USB
Light transmission: 80%
Type: 5-wire resistive touchscreen

Cooling system:

Cooling mode: fanless design (cooled by aluminum fins)

Rear I/O:

Ethernet: 1 x RJ-45 (RTL8105E-VL Ethernet controller)
VGA: 1 x VGA
DVI: 1 x DVI
Audio: 1 x audio (line-out)
USB: 4 x USB 2.0
Serial port: 2 x RS232
Power-in: 1 x DC-in Phoenix terminal, 1 x DC jack
Power button: 1 x ATX power button

Power:

System power requirement: +12V DC power input
Power adapter:
- Input: 100 - 250V AC/47 - 63Hz
- Output: 72W adapter (12V @ 6A)

Environmental:

Operating temperature: 0°C - 60°C (32°F - 140°F)
Relative humidity: 0% - 90% RH (non-condensing)
Storage temperature: -20°C - 70°C (-4°F - 158°F)

Option:

Serial port: multi serial ports optional (maximum 6 x COM)
USB port: multi USB ports optional (maximum 6 x USB)
Wi-Fi: optional
Chassis color: customized services provided
Logo: customized services provided

Front panel: aluminum panel, meet with NEMA4 IP65

Chassis: heavy steel chassis

Dimensions (W x H x D): 482.6mm x 310mm x 133mm

Mounting: rack mounting

Color: matte black

Weight: about 8kgs

CPU: Intel Atom D2550 1.86GHz/1MB CPU

Chipset: Intel® NM10 chipset

BIOS: AMI BIOS, support ACPI

Watchdog: programmable counter from 1 - 255

Graphic: Intel GMA3650, shared system memory

Memory: 2GB DDR3 system memory

Storage: 320GB 2.5" HDD (2.5" SSD optional)

Expansion: 1 x mini-PCIe slot, 1 x mini-SATA, 2 x PCI optional

System: Windows XP and 7

LCD size: 15" TFT LCD

Aspect ratio: 4:3

Resolution: 1024 x 768P

Luminance: 300cd/m²

Contrast ratio: 1500:1

Backlight: LED

Colors: 16.2M colors

Interface: USB

Light transmission: 80%

Type: 5-wire resistive touchscreen

Cooling mode: fanless design (cooled by aluminum fins)

Ethernet: 1 x RJ-45 (RTL8105E-VL Ethernet controller)

VGA: 1 x VGA

DVI: 1 x DVI

Audio: 1 x audio (line-out)

USB: 4 x USB 2.0

Serial port: 2 x RS232

Power-in: 1 x DC-in Phoenix terminal, 1 x DC jack

Power button: 1 x ATX power button

System power requirement: +12V DC power input

Power adapter:

Input: 100 - 250V AC/47 - 63Hz
Output: 72W adapter (12V @ 6A)

Input: 100 - 250V AC/47 - 63Hz

Output: 72W adapter (12V @ 6A)

Operating temperature: 0°C - 60°C (32°F - 140°F)

Relative humidity: 0% - 90% RH (non-condensing)

Storage temperature: -20°C - 70°C (-4°F - 158°F)

Serial port: multi serial ports optional (maximum 6 x COM)

USB port: multi USB ports optional (maximum 6 x USB)

Wi-Fi: optional

Chassis color: customized services provided

Logo: customized services provided
