Product Description

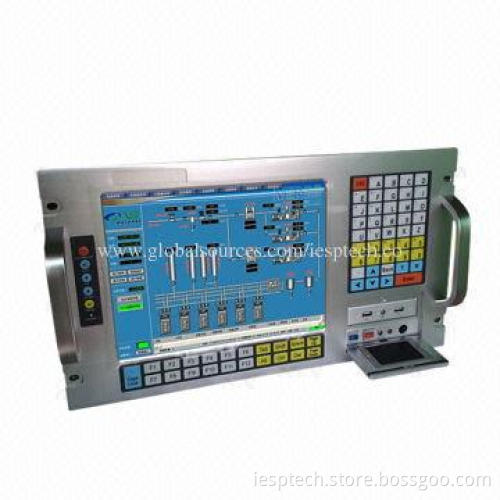

IESP-5212-K-D2550: 12.1" industrial panel system

Mechanical:

Front panel: aluminum panel, meet with NEMA4 IP65
Chassis: heavy steel chassis
Dimensions (W x H x D): 482.6mm x 266mm x 133mm
Mounting: rack mounting
Color: matte black
Weight: about 7kgs

System data:

CPU: Intel Atom D2550 1.86GHz/1MB CPU
Chipset: Intel® NM10 chipset
BIOS: AMI BIOS, support ACPI
Watchdog: programmable counter from 1 - 255
Graphic: Intel GMA3650, shared system memory
Memory: 2GB DDR3 system memory
Storage: 320GB HDD
Expansion: 1 x mini-PCIe, 1 x mini-SATA, 2 x PCI optional
System: Windows XP and 7

LCD:

LCD size: 12.1" TFT LCD
Aspect ratio: 4:3
Resolution: 1024 x 768P
Luminance: 420cd/m²
Contrast ratio: 550:1
Backlight: LED
Colors: 16.2M colors

Touchscreen:

Interface: USB
Light transmission: 80%
Type: 5-wire resistive touchscreen

Cooling system:

Cooling mode: fanless design

Keyboard and mouse:

Keyboard: 1 x full function membrane keyboard
Mouse: 1 x touchpad

Front I/O, LED and Button:

USB: 2 x USB
LEDs: 1 x HDD LED, 1 x power LED
Button: 1 x ATX button, 1 x reset button

Rear I/O:

Ethernet: 2 x RJ-45 GLAN
VGA: 1 x VGA
HDMI: 1 x HDMI
Audio: 1 x audio
USB: 2 x USB 2.0
Serial port: 2 x RS232
Power-in: 1 x DC-in Phoenix terminal

Power:

System power requirement: +12V DC power input
Power adapter:
- Input: 100 - 250V AC/47 - 63Hz
- Output: 60W adapter (12V @ 5A)

Environmental:

Operating temperature: 0°C - 60°C (32°F - 140°F)
Relative humidity: 0% - 90% RH (non-condensing)
Storage temperature: -20°C - 70°C (-4°F - 158°F)

Option:

Serial port: maximum 6 x COM
USB port: maximum 6 x USB
Wi-Fi: optional
Chassis color: customized services provided
Logo: customized services provided

Front panel: aluminum panel, meet with NEMA4 IP65

Chassis: heavy steel chassis

Dimensions (W x H x D): 482.6mm x 266mm x 133mm

Mounting: rack mounting

Color: matte black

Weight: about 7kgs

CPU: Intel Atom D2550 1.86GHz/1MB CPU

Chipset: Intel® NM10 chipset

BIOS: AMI BIOS, support ACPI

Watchdog: programmable counter from 1 - 255

Graphic: Intel GMA3650, shared system memory

Memory: 2GB DDR3 system memory

Storage: 320GB HDD

Expansion: 1 x mini-PCIe, 1 x mini-SATA, 2 x PCI optional

System: Windows XP and 7

LCD size: 12.1" TFT LCD

Aspect ratio: 4:3

Resolution: 1024 x 768P

Luminance: 420cd/m²

Contrast ratio: 550:1

Backlight: LED

Colors: 16.2M colors

Interface: USB

Light transmission: 80%

Type: 5-wire resistive touchscreen

Cooling mode: fanless design

Keyboard: 1 x full function membrane keyboard

Mouse: 1 x touchpad

USB: 2 x USB

LEDs: 1 x HDD LED, 1 x power LED

Button: 1 x ATX button, 1 x reset button

Ethernet: 2 x RJ-45 GLAN

VGA: 1 x VGA

HDMI: 1 x HDMI

Audio: 1 x audio

USB: 2 x USB 2.0

Serial port: 2 x RS232

Power-in: 1 x DC-in Phoenix terminal

System power requirement: +12V DC power input

Power adapter:

Input: 100 - 250V AC/47 - 63Hz
Output: 60W adapter (12V @ 5A)

Input: 100 - 250V AC/47 - 63Hz

Output: 60W adapter (12V @ 5A)

Operating temperature: 0°C - 60°C (32°F - 140°F)

Relative humidity: 0% - 90% RH (non-condensing)

Storage temperature: -20°C - 70°C (-4°F - 158°F)

Serial port: maximum 6 x COM

USB port: maximum 6 x USB

Wi-Fi: optional

Chassis color: customized services provided

Logo: customized services provided
