Rugged Panel PC, 15" LCD, Touchscreen, C1037 CPU/2GB/320GB, 10xCOM/4xUSB/2xGLAN, Fan-less All in One

Rugged Panel PC, 15" LCD, Touchscreen, C1037 CPU/2GB/320GB, 10xCOM/4xUSB/2xGLAN, Fan-less All in One

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

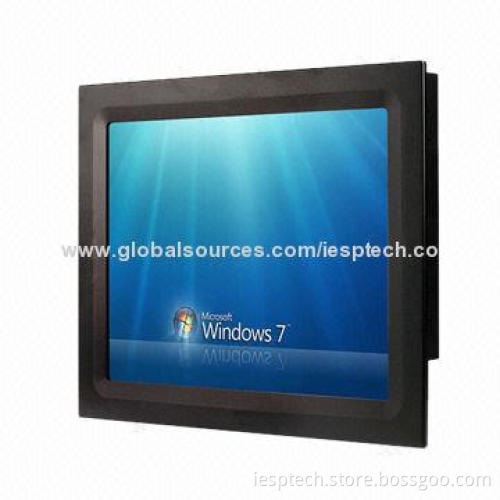

IESP-5115-C1037: 15" industrial panel system

Mechanical:

Front panel: aluminum panel, meet with NEMA4 IP65
Chassis: heavy steel chassis
Dimensions: 375 x 300 x 54.7mm
Mounting: panel mounting
Color: matte black
Weight: about 7kgs

System data:

CPU: Onboard Intel Celeron 1037U dual core 1.8GHz CPU
Chipset: NM70 chipset
BIOS: AMI 16M BIOS, ACPI supported
Watchdog: 1-65535 seconds/minute
Graphic: integrated HD graphics display core
Memory: 2GB DDR3 system memory
Storage: 320GB 2.5" HDD
Expansion: 1 x mini-PCIe slot, 1 x mini-SATA
System: Windows XP and 7

LCD:

LCD size: 15" TFT LCD
Aspect ratio: 4:3
Resolution: 1024 x 768P
Luminance: 300cd/m²
Contrast ratio: 1500:1
Backlight: LED
Colors: 16.2M colors

Touchscreen:

Interface: USB
Light transmission: 80%
Type: 5-wire resistive touch

Cooling system:

Cooling mode: fanless design (cooled by aluminum fins)

Rear I/O:

Ethernet: 2 x RJ-45 (RTL8111EL Gigabit Ethernet)
VGA: 2 x VGA
HDMI: 1 x HDMI
Audio: 1 x audio (microphone and line-out)
USB: 4 x USB 2.0
Serial port: 3 x RS232
Power-in: 1 x Phoenix terminal DC-in, 1 x DC jack
Power button: 1 x ATX power button

Power:

System power requirement: +12V DC power input
Power adapter:
- Inputs: 100 - 250 VAC/47 - 63Hz
- Output: 72W adapter (12V @ 6A)

Environmental range:

Operating temperature: 0°C - 60°C (32°F - 140°F)
Relative humidity: 0% - 90% RH (non-condensing)
Storage temperature: -20°C - 70°C (-4°F - 158°F)

Option:

Mounting: VESA 75 x 75mm optional
Serial port: multi serial ports optional (maximum 10 x COM)
USB port: multi USB ports optional (maximum 8 x USB)
Wi-Fi: optional
Storage: 2.5" SSD optional
Chassis color: customized services provided
Logo: customized services provided

Front panel: aluminum panel, meet with NEMA4 IP65

Chassis: heavy steel chassis

Dimensions: 375 x 300 x 54.7mm

Mounting: panel mounting

Color: matte black

Weight: about 7kgs

CPU: Onboard Intel Celeron 1037U dual core 1.8GHz CPU

Chipset: NM70 chipset

BIOS: AMI 16M BIOS, ACPI supported

Watchdog: 1-65535 seconds/minute

Graphic: integrated HD graphics display core

Memory: 2GB DDR3 system memory

Storage: 320GB 2.5" HDD

Expansion: 1 x mini-PCIe slot, 1 x mini-SATA

System: Windows XP and 7

LCD size: 15" TFT LCD

Aspect ratio: 4:3

Resolution: 1024 x 768P

Luminance: 300cd/m²

Contrast ratio: 1500:1

Backlight: LED

Colors: 16.2M colors

Interface: USB

Light transmission: 80%

Type: 5-wire resistive touch

Cooling mode: fanless design (cooled by aluminum fins)

Ethernet: 2 x RJ-45 (RTL8111EL Gigabit Ethernet)

VGA: 2 x VGA

HDMI: 1 x HDMI

Audio: 1 x audio (microphone and line-out)

USB: 4 x USB 2.0

Serial port: 3 x RS232

Power-in: 1 x Phoenix terminal DC-in, 1 x DC jack

Power button: 1 x ATX power button

System power requirement: +12V DC power input

Power adapter:

Inputs: 100 - 250 VAC/47 - 63Hz
Output: 72W adapter (12V @ 6A)

Inputs: 100 - 250 VAC/47 - 63Hz

Output: 72W adapter (12V @ 6A)

Operating temperature: 0°C - 60°C (32°F - 140°F)

Relative humidity: 0% - 90% RH (non-condensing)

Storage temperature: -20°C - 70°C (-4°F - 158°F)

Mounting: VESA 75 x 75mm optional

Serial port: multi serial ports optional (maximum 10 x COM)

USB port: multi USB ports optional (maximum 8 x USB)

Wi-Fi: optional

Storage: 2.5" SSD optional

Chassis color: customized services provided

Logo: customized services provided
