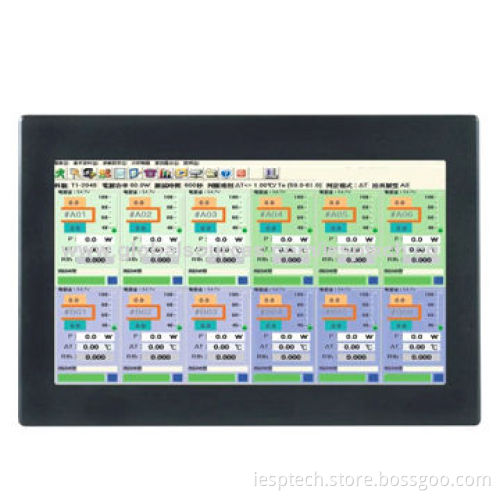

Industrial Panel PC, Panel Mount, 13.3" LCD, Touchscreen, D2550/2GB/320GB/6 COM/6 USB, All-in-one

Industrial Panel PC, Panel Mount, 13.3" LCD, Touchscreen, D2550/2GB/320GB/6 COM/6 USB, All-in-one

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Mechanical:

Front panel: aluminum panel, meet w/ NEMA4 IP65
Chassis: heavy steel chassis
Dimensions: 360 x 240 x 55mm
Mounting: panel mounting
Color: matte black panel + silver chassis
Weight: about 6.3kg

System data:

CPU: Intel Atom D2550 1.86GHz/1MB CPU
Chipset: Intel NM10 Chipset
BIOS: AMI BIOS, support ACPI
Watchdog: programmable counter from 1 - 255
Graphic: Intel GMA3650, shared system memory
Memory: 2GB DDR3 system memory
Storage: 320GB 2.5" HDD
Expansion: 1 x Mini-PCIe Slot, 1 x MINI-SATA
System: Windows XP,WIN7, Linux

LCD:

LCD size: 13.3" TFT LCD
Aspect ratio: 16:9
Resolution: 1366 x 768
Luminance: 200cd/m²
Contrast ratio: 500:1
Backlight: LED
Colors: 262k colors
Touchscreen
Touch interface: USB
Touch light transmission: 80%
Touch type: 5-wire resistive touch

Cooling system:

Cooling mode: fan-less design (cooling by aluminum fins)

Rear I/O:

Ethernet: 2 x RJ-45 (RTL 8111EL Gigabit Ethernet)
VGA: 1 x VGA
HDMI: 1 x HDMI
Audio: 1 x Audio (mic and line-out)
USB: 2 x USB 2.0
Serial port: 2 x RS232 (1 x RS232/422/485)
Power in: 1 x DC in
Power button: 1 x ATX power button

Power:

System power requirement: 12V DC power input
Power adapter:
- Input: 100 - 250V AC at 50/60Hz
- Output: 60W adapter (12V at 5A)

Environmental:

Operating temperature: 0-60°C (32-140°F)
Relative humidity: 0-90% relative humidity, non-condensing
Storage temperature: -20-70°C (-4-158°F)

Option:

Mounting: VESA 75mm x 75mm optional
Serial port: multi-serial ports optional (maximum 6 x COM)
USB port: multi USB Ports optional (maximum 6 x USB)
Wi-Fi optional
Storage: 2.5" SSD optional
Chassis color: provide customized services
Logo: provide customized services

Front panel: aluminum panel, meet w/ NEMA4 IP65

Chassis: heavy steel chassis

Dimensions: 360 x 240 x 55mm

Mounting: panel mounting

Color: matte black panel + silver chassis

Weight: about 6.3kg

CPU: Intel Atom D2550 1.86GHz/1MB CPU

Chipset: Intel NM10 Chipset

BIOS: AMI BIOS, support ACPI

Watchdog: programmable counter from 1 - 255

Graphic: Intel GMA3650, shared system memory

Memory: 2GB DDR3 system memory

Storage: 320GB 2.5" HDD

Expansion: 1 x Mini-PCIe Slot, 1 x MINI-SATA

System: Windows XP,WIN7, Linux

LCD size: 13.3" TFT LCD

Aspect ratio: 16:9

Resolution: 1366 x 768

Luminance: 200cd/m²

Contrast ratio: 500:1

Backlight: LED

Colors: 262k colors

Touchscreen

Touch interface: USB

Touch light transmission: 80%

Touch type: 5-wire resistive touch

Cooling mode: fan-less design (cooling by aluminum fins)

Ethernet: 2 x RJ-45 (RTL 8111EL Gigabit Ethernet)

VGA: 1 x VGA

HDMI: 1 x HDMI

Audio: 1 x Audio (mic and line-out)

USB: 2 x USB 2.0

Serial port: 2 x RS232 (1 x RS232/422/485)

Power in: 1 x DC in

Power button: 1 x ATX power button

System power requirement: 12V DC power input

Power adapter:

Input: 100 - 250V AC at 50/60Hz
Output: 60W adapter (12V at 5A)

Input: 100 - 250V AC at 50/60Hz

Output: 60W adapter (12V at 5A)

Operating temperature: 0-60°C (32-140°F)

Relative humidity: 0-90% relative humidity, non-condensing

Storage temperature: -20-70°C (-4-158°F)

Mounting: VESA 75mm x 75mm optional

Serial port: multi-serial ports optional (maximum 6 x COM)

USB port: multi USB Ports optional (maximum 6 x USB)

Wi-Fi optional

Storage: 2.5" SSD optional

Chassis color: provide customized services

Logo: provide customized services
