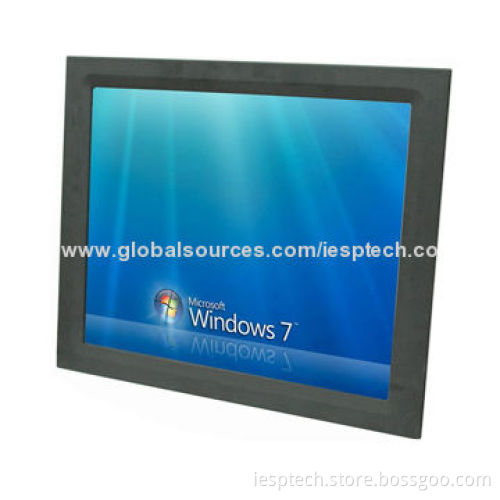

19 inch Industrial Panel PC, Touchscreen, i3 CPU/4GB DDR3/500GB, 6COM/4USB/GLAN, fanless all in one

19 inch Industrial Panel PC, Touchscreen, i3 CPU/4GB DDR3/500GB, 6COM/4USB/GLAN, fanless all in one

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

IESP-5119-HM76

19" fanless industrial panel system

Mechanical:

Front panel: aluminum panel, meet with NEMA4 IP65
Chassis: heavy steel chassis
Dimensions: 450 x 370 x 67.5mm
Mounting: panel mounting
Color: matte black
Weight: about 9kg

System data:

CPU: Intel Ivy Bridge Core i3 3217U CPU
Chipset: HM76
BIOS: AMI BIOS
Watchdog: supported
Graphic: Intel HD graphics 4000
Memory: 4GB DDR3 system memory
Storage: 500GB 2.5" HDD
Expansion: 1 x mini-SATA, 1 x mini PCI-e
System: WIN 7, WIN 8

LCD:

LCD size: 19" TFT LCD
Aspect ratio: 4:3
Resolution: 1280 x 1024P
Luminance: 350cd/m²
Contrast ratio: 500:1
Backlight: LED
Colors: 16.7M colors

Touchscreen:

Interface: USB
Light transmission: 80%
Type: 5-wire resistive touchscreen

Cooling system:

Cooling mode: fanless design (cooled by aluminum fins)

Rear I/O:

Ethernet: 1 x RJ-45 (gigabit Ethernet)
VGA: 1 x VGA
Audio: 1 x audio (microphone and line-out)
Serial port: 6 x COM
USB: 4 x USB 2.0
Power-in: 1 x Phoenix terminal DC-in
Power button: 1 x ATX power button

Power:

System power requirement: 12V DC in
Power adapter:
- Input: 100-250V AC/47-63Hz
- Output: 100W adapter (12V at 8A)

Environmental:

Operating temperatures: 0-60°C (32-140°F)
Relative humidity range: 0-90% RH (non-condensing)
Storage temperatures: -20-70°C (-4-158°F)

Option:

Mounting: VESA 75 x 75mm optional
Serial port: multi-serial ports optional (maximum 6 x COM)
USB port: multi-USB ports optional (maximum 8 x USB)
Wi-Fi: 1 x Wi-Fi optional
Storage: 2.5" SSD optional
Chassis color: customized services are provided
Logo: customized services are provided

Front panel: aluminum panel, meet with NEMA4 IP65

Chassis: heavy steel chassis

Dimensions: 450 x 370 x 67.5mm

Mounting: panel mounting

Color: matte black

Weight: about 9kg

CPU: Intel Ivy Bridge Core i3 3217U CPU

Chipset: HM76

BIOS: AMI BIOS

Watchdog: supported

Graphic: Intel HD graphics 4000

Memory: 4GB DDR3 system memory

Storage: 500GB 2.5" HDD

Expansion: 1 x mini-SATA, 1 x mini PCI-e

System: WIN 7, WIN 8

LCD size: 19" TFT LCD

Aspect ratio: 4:3

Resolution: 1280 x 1024P

Luminance: 350cd/m²

Contrast ratio: 500:1

Backlight: LED

Colors: 16.7M colors

Interface: USB

Light transmission: 80%

Type: 5-wire resistive touchscreen

Cooling mode: fanless design (cooled by aluminum fins)

Ethernet: 1 x RJ-45 (gigabit Ethernet)

VGA: 1 x VGA

Audio: 1 x audio (microphone and line-out)

Serial port: 6 x COM

USB: 4 x USB 2.0

Power-in: 1 x Phoenix terminal DC-in

Power button: 1 x ATX power button

System power requirement: 12V DC in

Power adapter:

Input: 100-250V AC/47-63Hz
Output: 100W adapter (12V at 8A)

Input: 100-250V AC/47-63Hz

Output: 100W adapter (12V at 8A)

Operating temperatures: 0-60°C (32-140°F)

Relative humidity range: 0-90% RH (non-condensing)

Storage temperatures: -20-70°C (-4-158°F)

Mounting: VESA 75 x 75mm optional

Serial port: multi-serial ports optional (maximum 6 x COM)

USB port: multi-USB ports optional (maximum 8 x USB)

Wi-Fi: 1 x Wi-Fi optional

Storage: 2.5" SSD optional

Chassis color: customized services are provided

Logo: customized services are provided
