Product Description

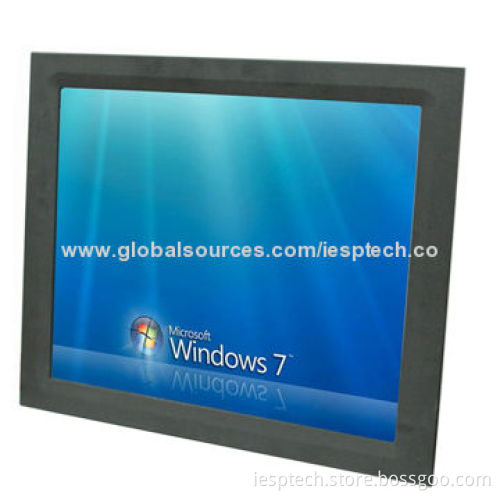

19 inch Industrial Panel PC IESP-5119-C1037

Mechanical:

Front panel: aluminum panel, meets with NEMA4 IP65
Chassis: heavy steel chassis
Dimensions: 450 x 370 x 67.5mm
Mounting: panel
Color: matte black
Weight: about 9kg

System data:

CPU: onboard Intel Celeron 1037U dual core 1.8GHz
Chipset: NM70
BIOS: AMI 16M BIOS, ACPI supported
Watchdog: 1-65535 seconds/minute
Graphic: integrated HD graphics display core
Memory: 2GB DDR3 system
Storage: 320GB 2.5" HDD
Expansion: 1 x mini-PCIe slot, 1 x mini-SATA
System: Microsoft Windows XP and 7

LCD:

LCD size: 19" TFT LCD
Aspect ratio: 4:3
Resolution: 1280 x 1024 pixels
Luminance: 350cd/m²
Contrast ratio: 500:1
Backlight: LED
Colors: 16.7M colors

Touch screen:

Interface: USB
Light transmission: 80%
Type: 5-wire resistive touch screen

Cooling system:

Cooling mode: fanless design (cooled by aluminum fins)

Rear I/O:

Ethernet: 1 x RJ-45 (RTL8111F gigabit controller)
VGA: 1 x VGA
HDMI: 1 x HDMI
Audio: 1 x audio (microphone and line-out)
USB: 2 x USB 2.0, 2 x USB3.0
Serial port: 4 x RS232
Power-in: 1 x power Phoenix terminal, 1 x DC jack
Power button: 1 x ATX power button

Power:

System power requirement: 12V DC power input
Power adapter:
- Inputs: 100 to 250V AC/47 to 63Hz
- Output: 80W adapter (12V at 7A)

Environmental range:

Operating temperature: 0 to 60°C (32 to 140°F)
Relative humidity: 0 to 90% RH (non-condensing)
Storage temperature: -20 to 70°C (-4 to 158°F)

Option:

Mounting: VESA 75 x 75mm optional
Serial port: multi serial ports optional (maximum up to 6 x COM)
USB port: multi USB ports optional (maximum 8 x USB)
Wi-Fi: optional
Storage: 2.5" SSD optional
Chassis color: customized services are provided
Logo: customized services are provided

Front panel: aluminum panel, meets with NEMA4 IP65

Chassis: heavy steel chassis

Dimensions: 450 x 370 x 67.5mm

Mounting: panel

Color: matte black

Weight: about 9kg

CPU: onboard Intel Celeron 1037U dual core 1.8GHz

Chipset: NM70

BIOS: AMI 16M BIOS, ACPI supported

Watchdog: 1-65535 seconds/minute

Graphic: integrated HD graphics display core

Memory: 2GB DDR3 system

Storage: 320GB 2.5" HDD

Expansion: 1 x mini-PCIe slot, 1 x mini-SATA

System: Microsoft Windows XP and 7

LCD size: 19" TFT LCD

Aspect ratio: 4:3

Resolution: 1280 x 1024 pixels

Luminance: 350cd/m²

Contrast ratio: 500:1

Backlight: LED

Colors: 16.7M colors

Interface: USB

Light transmission: 80%

Type: 5-wire resistive touch screen

Cooling mode: fanless design (cooled by aluminum fins)

Ethernet: 1 x RJ-45 (RTL8111F gigabit controller)

VGA: 1 x VGA

HDMI: 1 x HDMI

Audio: 1 x audio (microphone and line-out)

USB: 2 x USB 2.0, 2 x USB3.0

Serial port: 4 x RS232

Power-in: 1 x power Phoenix terminal, 1 x DC jack

Power button: 1 x ATX power button

System power requirement: 12V DC power input

Power adapter:

Inputs: 100 to 250V AC/47 to 63Hz
Output: 80W adapter (12V at 7A)

Inputs: 100 to 250V AC/47 to 63Hz

Output: 80W adapter (12V at 7A)

Operating temperature: 0 to 60°C (32 to 140°F)

Relative humidity: 0 to 90% RH (non-condensing)

Storage temperature: -20 to 70°C (-4 to 158°F)

Mounting: VESA 75 x 75mm optional

Serial port: multi serial ports optional (maximum up to 6 x COM)

USB port: multi USB ports optional (maximum 8 x USB)

Wi-Fi: optional

Storage: 2.5" SSD optional

Chassis color: customized services are provided

Logo: customized services are provided
