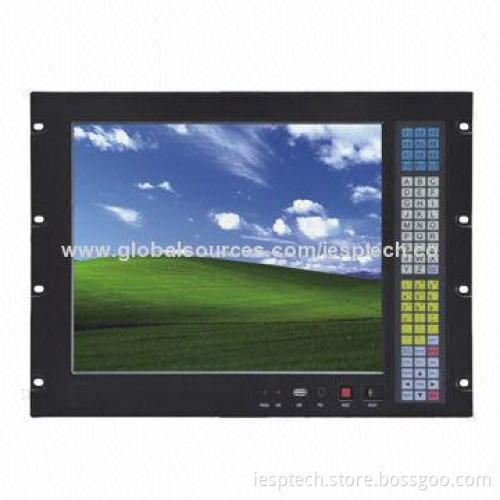

All-in-one Industrial Workstation, 8U Rack Mount/17" TFT LCD/Touchscreen/P7550 CPU/2GB RAM/320GB HDD

All-in-one Industrial Workstation, 8U Rack Mount/17" TFT LCD/Touchscreen/P7550 CPU/2GB RAM/320GB HDD

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Mechanical:

Front panel: aluminum panel, meets with NEMA4, IP65
Chassis: heavy steel
Dimension (W x D x H): 482 x 251 x 354mm
Mount: rack mount
Color: matte black
Weight: about 19kg

System data:

CPU board: industrial full size CPU card/micro ATX motherboard
CPU: on-board Intel Core 2 Duo P7550
Chipset: Intel 82GM45+ICH9-M
Watch dog: 255 levels programmable counter
Memory capacity: 2GB DDR3 system memory (maximum up to 4GB)
Storage: 320GB (4 x 3.5” HDD driver bay)
Expansion: 4 x PCI, 3 x ISA and 2 x PICMG1.0
CD-ROM driver bay: 1 x 5.25” CD-ROM
Cooling system: 2 x fans

LCD:

Display size: 17" TFT LCD
Aspect ratio: 4:3
Resolution: 1,280 x 1,024P
Luminance: 350cd/m²
Contrast ratio: 1,000:1
Backlight: LED
Colors: 16.2M colors

Touchscreen:

Interface: USB/COM
Light transmission: 80%
Type: 5-wire resistive touchscreen

Keyboard: 1 x full function membrane

Front I/O and LEDs:

USB: 1 x USB 2.0
Power button: 1 x power on button and 1 x reset button
LEDs: 1 x HDD LED and 1 x power LED
PS/2: 1 x PS/2 for keyboard

Internal I/O:

COM: 2 x COM
SATA: 3 x SATA, 1 x IED and 1 x FDD
USB: 6 x USB 2.0
Audio: 1 x AC 97 (line-in/line-out/mic)
LPT: 1 x LPT

Rear I/O:

LAN: 2 x RJ45 Intel GLAN (10/100/1000Mbps)
PS/2: 1 x PS/2 for KB and MS
USB: 1 x USB 2.0
LPT: 1 x VGA

Power supply:

Power on mode: AT/ATX
Power supply: 300W/2U/ATX industrial
Input requirement: 100 to 250V AC at 47 to 63Hz

Environmental:

Operating temperature: -10 to 60°C (32 to 140°F)
Relative humidity: 0 to 90%, non-condensing
Storage temperature: -20 to 70°C (-4 to 158°F)

Optional:

Customized chassis colors and logos are accepted

Front panel: aluminum panel, meets with NEMA4, IP65

Chassis: heavy steel

Dimension (W x D x H): 482 x 251 x 354mm

Mount: rack mount

Color: matte black

Weight: about 19kg

CPU board: industrial full size CPU card/micro ATX motherboard

CPU: on-board Intel Core 2 Duo P7550

Chipset: Intel 82GM45+ICH9-M

Watch dog: 255 levels programmable counter

Memory capacity: 2GB DDR3 system memory (maximum up to 4GB)

Storage: 320GB (4 x 3.5” HDD driver bay)

Expansion: 4 x PCI, 3 x ISA and 2 x PICMG1.0

CD-ROM driver bay: 1 x 5.25” CD-ROM

Cooling system: 2 x fans

Display size: 17" TFT LCD

Aspect ratio: 4:3

Resolution: 1,280 x 1,024P

Luminance: 350cd/m²

Contrast ratio: 1,000:1

Backlight: LED

Colors: 16.2M colors

Interface: USB/COM

Light transmission: 80%

Type: 5-wire resistive touchscreen

USB: 1 x USB 2.0

Power button: 1 x power on button and 1 x reset button

LEDs: 1 x HDD LED and 1 x power LED

PS/2: 1 x PS/2 for keyboard

COM: 2 x COM

SATA: 3 x SATA, 1 x IED and 1 x FDD

USB: 6 x USB 2.0

Audio: 1 x AC 97 (line-in/line-out/mic)

LPT: 1 x LPT

LAN: 2 x RJ45 Intel GLAN (10/100/1000Mbps)

PS/2: 1 x PS/2 for KB and MS

USB: 1 x USB 2.0

LPT: 1 x VGA

Power on mode: AT/ATX

Power supply: 300W/2U/ATX industrial

Input requirement: 100 to 250V AC at 47 to 63Hz

Operating temperature: -10 to 60°C (32 to 140°F)

Relative humidity: 0 to 90%, non-condensing

Storage temperature: -20 to 70°C (-4 to 158°F)

Customized chassis colors and logos are accepted
