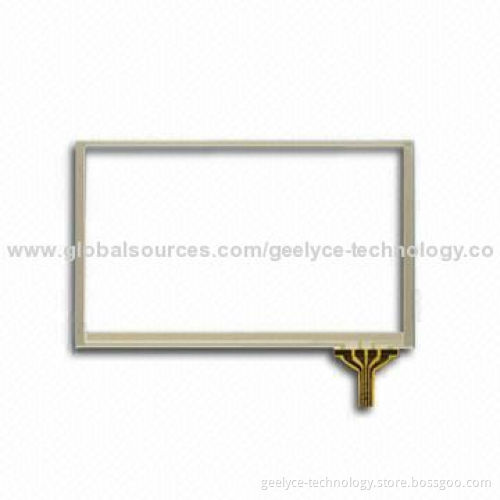

4-wire TFT LCD Module with 5.0V Working Voltage and >80% Transitivity

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Structure: glass + film

Linearity:

Flattering time: ≤10ms

Operating force: ≤150g

Surface hardness: 3H,

Water- and dust-resistant: NEMA 4 and 12, IP65 standard

Operating temperatures: -20 to 70°C

Storage temperatures: -30 to 80°C

Operating humidity range: 20 to 90% RH

Storage humidity range: 10 to 90% RH

Certifications: CE, FCC and RoHS Directive-compliant

Thicknesses: 1.1 to 2.0mm

Haze range: 1 to 10 (customized)

Transmittance:

Sizes: 2.0 to 15 inches

For tempered glass TP:

X: ≤1.5%

Y: ≤1.5%

Clear film: ≥92 and ≤80%

Anti-clear film: ≥92%

1.8mm vandal-resistant panel can stand steel ball falling (227g) from 1m

2.8mm vandal-resistant panel can stand steel ball falling (227g) from 1.3m

5.5mm vandal-resistant panel can stand steel ball falling (227g) from 2m.
