New Pitch P18.75 Outdoor Stadium LED Screen, Design for Footballs, 60 to 85Hz Frame Frequency Range

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

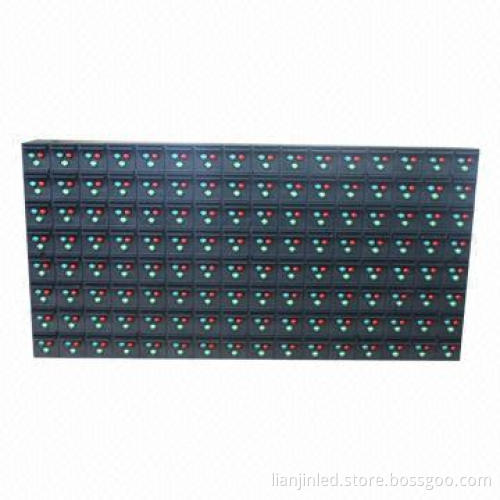

Pixel pitch: 18.75mm

DIP: 1R/1G/1B DIP546

Pixel construction: 1 red, 1 green and 1 blue chip (1R/1G/1B)

Module resolution (L x H): 16 x 8 pixels

Module size: 300 x 150mm

Brightness of white: 7,000cd/m² at least

Optimal viewing distance: 10 to 100m

Grayscale: 14-bit

Display colors: 1,024 x 1,024 x 1,024/1 billion

Viewing angle (H/V): 100/45°

Refresh rate: 3,400Hz at least

Driving mode: constant driving

Brightness adjustment range: 0 to 100% with 8 levels automatic

Gamma correction range: -5.0 to 5.0mm

Frame frequency range: 60 to 85Hz

Color temperature range: 5,000 to 9,300K (control by the software)

Input source supports: S-video/VGA/DVI/SDI/HD-SDI

Lifespan: 100,000 hours at least

MTBF: 5,000 hours at least

Out of control rate: 3/10,000 at most
