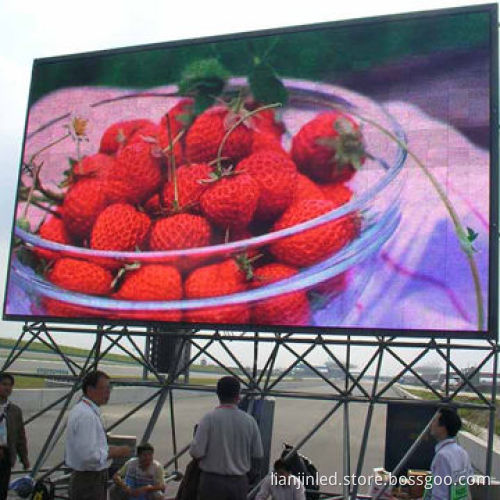

LED Display Screen Sign with 60 to 85Hz Frame Frequency and 480Hz at Least Refresh Rate

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Pixel pitch: 16mm

Pixel construction: 2 red chips, 1 green chip and 1 blue chip(2R1G1B)

Module resolution (L x H): 16 x 8mm = 128 pixel dots

Brightness of white: 8,000CD/m² at least

The optimal viewing distance: 15 to 140m

Grey scale: 10-bit/1,024-level

Display color: 1,024 x 1,024 x 1,024 = 1 billion

Viewing angles (H/V): 100/45°

Refresh rate: 400Hz at least

Driving mode: constant driving 1/4 scan

Brightness adjustment: 0 to 100% with 8 levels automatic

Gamma correction: -5.0 to 5.0)

Correction scale level: 16B

Frame frequency: 60 to 85Hz

Color temperatures: 5,000 to 9,300K (control by thesoftware)

Input source support: S-video, VGA, DVI, SDI and HD-SDI

Lifespan: 100,000 hours at least

MTBF: 5,000 hours at least

Out of control rate: 3/10,000 at most
