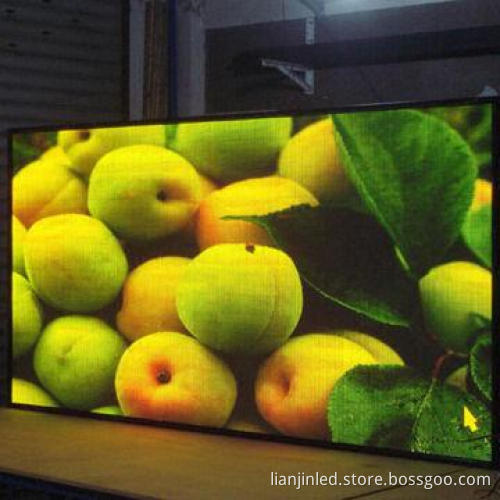

LED Display with 3-in-1 SMD and 8mm Pixel Pitch, 60 to 85Hz Frame Frequency

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Pixel pitch: 8mm

SMD: 3-in-1

Pixel construction: one chip with 3 color (3-in-1)

Module resolution (L x H): 32 x 16mm: 512 pixel dots

Brightness of white: 1,500cs/m² at least

Optimal viewing distance: 5 to 38 meters

Grayscale: 10-bit/1,024 levels

Display color: 1,024 x 1,024 x 1,024: 1 billion

Viewing angle (H/V): 100/45 degrees

Refresh rate: 400Hz at least

Driving mode: constant driving 1/4 scan

Brightness adjustment: 0 to 100% with 8 levels automatic

Gamma correction: -5.0

Correction scale level: 16 bits

Frame frequency: 60 to 85Hz

Color temperature: 5,000 to 9,300K (control by the software)

Input source supported: S-Video/VGA/DVI/SDI/HD-SDI

Lifespan: 100,000 hours at least

MTBF: 5,000 hours at least

Out of control rate: 3/10,000 at most
