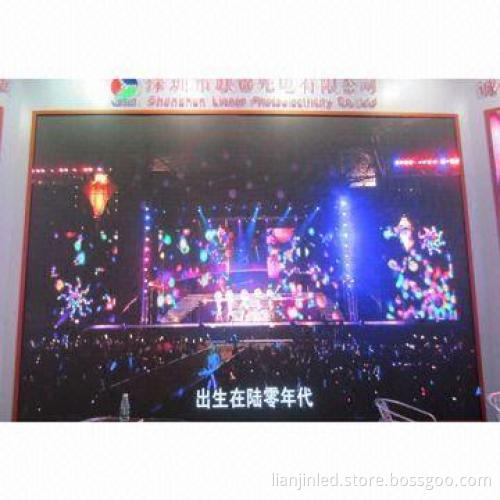

LED Display/Screen/Sign with SMD 3-in-1, 6mm Pixel Pitch, 60 to 85Hz Frame Frequency

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Pixel pitch: 6mm

SMD 3-in-1

Module resolution (L x H): 32 x 16mm = 512 pixel dots

Brightness of white: 2,000cd/sqm at least

The optimal viewing distance: 3 to 38m

Grey scale: 10 bits/1,024 levels

Display color: 1,024 x 1,024 x 1,024 = 1 billion

Viewing angle (H/V): 150/120 degrees

Refresh rate: 180Hz at least

Driving mode: constant driving 1/8 scan

Brightness adjustment: 0 to 100% with 8 levels automatic

Gamma correction (-5.0 to 5.0)

Correction scale level: 16 bits

Frame frequency: 60 to 85Hz

Color temperature: 5,000 to 9,300K (control by the software)

Input source supports: S-video/VGA/DVI/SDI/HD-SDI

Lifetime: 100,000 hours at least

MTBF: 5,000 hours at least

Out of control rate: 3/10,000
