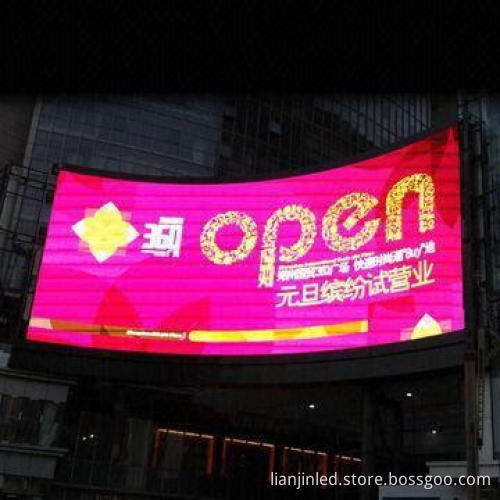

P12 LED Display/Screen/Sign with DIP 1R, 1G, 1B

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Pixel pitch: 12mm

Encapsulation: DIP 346

Module resolution (L x H): 16 x 16mm = 256 pixels (dots)

Pixel density: 6,944 pixels (dots/sqm)

Brightness of white: 7,500CD/sqm at least

The optimal viewing distance: 10 to 100m

Grey scale: 8 bits/256 levels

Display color: 256 x 256 x 256 = 16 millions

Viewing angle (H/V): 100/45 degrees

Refresh rate: 400Hz at least

Driving mode: constant driving 1/2 scan

Protection degrees: 65IP

Color temperature: 5,000 to 9,300K

Average power consumption: 500W/sqm

Maximum power consumption: 700W/sqm

Input source supports: S-video/VGA/DVI/SDI/HD-SDI

Lifetime: 100,000 hours at least

MTBF: 5,000 hours at least

Out of control rate: 3/10,000 at most

Working temperature: -20 to 60°C

Working humidity: 10% to 95% RH
