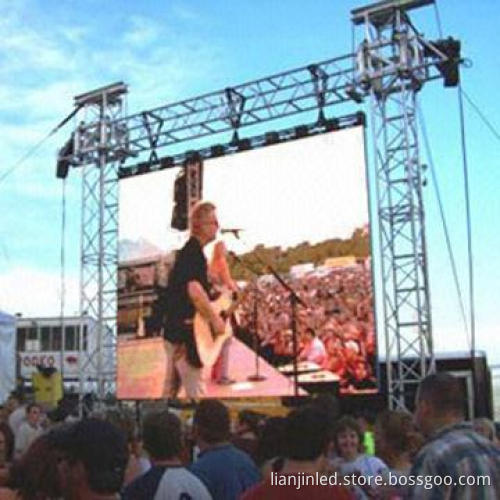

LED Video Wall Screen for Rental Business, with 16 x 16 Pixels Resolution

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Cabinet parameters:

Technical parameters:

Cabinet size: 960 x 960mm

Cabinet resolution: 96 x 96 pixels

Module quantity: 6x 6 pieces

Pixel pitch: 10mm

Resolution: 16 x 16 pixels

Module size: 160 x 160mm

Pixel configuration: 1R1G1B

Density: 10,000 dots/m²

LED standard: DIP346

Best viewing distance: 8 to 75m

Best viewing angle:

Brightness: ≥7,500cd/m²

Drive mode: constant driving with 1/4 scan

Exchange frame frequency: 60Hz

Refresh rate: 800Hz

Gray grade: 1,024 levels

Protection rate: IP65

Control mode: synchronization

Working voltage: 380V ± 10％

Maximum power consumption: 1000W/m²

Working environment temperature: -20 to 50°C

Screen lifespan: ≥10,000 hours

Blind dot rate: below 0.0001

Operating system: Windows 98, XP, 2000 and more

Video signal: RF, S-video, RGB, RGBHV, YUV and more

Control system: DVI graphics card + sending card + receiving card

Software: LED studio

Compliant with CE standard and RoHS Directive

Horizontal: 110°

Vertical: 55°
