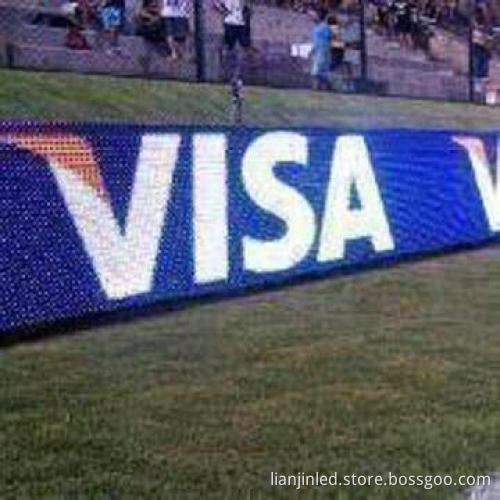

Football Stadium Perimeter Outdoor Full Color LED Screen Display, 25mm Pitch and 2R1G1B/Pixel

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Physical display resolution:
- Horizontal: 80 dots
- Vertical: 40 dots, 3,200 pixels/each cabinet
Pixel pitch: 25mm (16, 20, 31.25mm optional)
Pixel density: 1,600 dots/m²
Pixel composition 2 red, 1 pure green and 1 pure blue
Display dimensions: 2.0 x 1.0m (2m²/each cabinet)
It can be formed a very long LED stadium perimeter display, 100 to 300m long, 1.0m high
Cabinet depth: ≤180mm
Brightness: ≥6,000 nits
Gray level: R, G, B 256 levels each
Brightness adjustment 64 grades
Viewing angle:
- Horizontal: ≥110 degrees
- Vertical (up): ≥50 degrees
Best viewing distance: 50 to 250m
The viewers are seated the other side of the triangular field
Thus normally the distance is over 50 meters, our viewing distance is suitable a lot
Scan frequency: ≥600Hz
Hight enough and when the video camera spot on it, the LED display won't sparkle and show high-quality image as before
Video frame rate: ≥120fps
Control method: controlled by PC
Out-of control pixel: ≤1/10,000
MTBF: ≥10,000 hours
LED lifespan (half brightness): ≥ 100,000 hours
Level up degree: ≤ ± 1mm
Weight: ≤ 60kg/m²
Easy to carry and quick to install/un-install
Input voltage: 220V AC/50Hz, ± 10%
Operating temperature: -40 to +60 degrees Celsius
Operating humidity: 10 to 90% RH
Operating voltage: 220V AC or 48V DC
Operating system: Microsoft's Windows 98/2000/me/XP
Aging time: 168 hours
Mask material: rubber
Soft rubber mask to avoid injuries of players
Waterproof: IP65 (completely waterproof, including waterproof plug)

All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.

Physical display resolution:

Horizontal: 80 dots
Vertical: 40 dots, 3,200 pixels/each cabinet

Pixel pitch: 25mm (16, 20, 31.25mm optional)

Pixel density: 1,600 dots/m²

Pixel composition 2 red, 1 pure green and 1 pure blue

Display dimensions: 2.0 x 1.0m (2m²/each cabinet)

It can be formed a very long LED stadium perimeter display, 100 to 300m long, 1.0m high

Cabinet depth: ≤180mm

Brightness: ≥6,000 nits

Gray level: R, G, B 256 levels each

Brightness adjustment 64 grades

Viewing angle:

Horizontal: ≥110 degrees
Vertical (up): ≥50 degrees

Best viewing distance: 50 to 250m

The viewers are seated the other side of the triangular field

Thus normally the distance is over 50 meters, our viewing distance is suitable a lot

Scan frequency: ≥600Hz

Hight enough and when the video camera spot on it, the LED display won't sparkle and show high-quality image as before

Video frame rate: ≥120fps

Control method: controlled by PC

Out-of control pixel: ≤1/10,000

MTBF: ≥10,000 hours

LED lifespan (half brightness): ≥ 100,000 hours

Level up degree: ≤ ± 1mm

Weight: ≤ 60kg/m²

Easy to carry and quick to install/un-install

Input voltage: 220V AC/50Hz, ± 10%

Operating temperature: -40 to +60 degrees Celsius

Operating humidity: 10 to 90% RH

Operating voltage: 220V AC or 48V DC

Operating system: Microsoft's Windows 98/2000/me/XP

Aging time: 168 hours

Mask material: rubber

Soft rubber mask to avoid injuries of players

Waterproof: IP65 (completely waterproof, including waterproof plug)

Horizontal: 80 dots

Vertical: 40 dots, 3,200 pixels/each cabinet

Horizontal: ≥110 degrees

Vertical (up): ≥50 degrees
