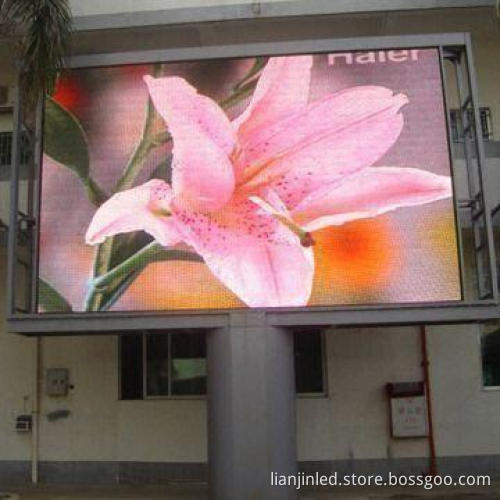

Outdoor Full Color LED Display with 16 x 16-pixel Resolution and 12mm Pixel Pitch

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Pixel pitch: 12mm

Resolution: 16 x 16 pixels

Module size: 192 x 192mm

Pixel configuration: 2R1G1B

Density: 6,744 dots/m²

Cabinet parameters:

Cabinet size: 768 x 768mm
Cabinet resolution: 64 x 64mm
Module quality: 4 x 4 pieces

Main technical parameters:

LED standard: DIP346
Best viewing distance: 12 to 130m
Best viewing angle:
- Horizontal: 120°
- Vertically: 55°
Brightness: ≥6,500cd/m²
Drive mode: constant driving, 1/4 scan
Exchange frame frequency: ≥60Hz
Refresh rate: ≥350Hz
Grey grade: 1,204 levels
Protection rate: PI65
Control mode: synchronization
Operating voltage: 380V ± 10%
Power consumption: 800W/m² (maximum)
Operating environment temperature: -20 to 50°C
Screen lifespan: ≥100,000 hours
Blind DOT rate: below 0.0001
Computer operating system: Microsoft’s Windows 98, XP, 2000 and more
Video signal: RF, S-video, RGB, RGBHV, YUV and more
Control system: DVI graphics card, sending card and receiving card
PC display mode:
- Software: LED studio
With RoHS, CE, FCC marks

All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.

Cabinet size: 768 x 768mm

Cabinet resolution: 64 x 64mm

Module quality: 4 x 4 pieces

LED standard: DIP346

Best viewing distance: 12 to 130m

Best viewing angle:

Horizontal: 120°
Vertically: 55°

Brightness: ≥6,500cd/m²

Drive mode: constant driving, 1/4 scan

Exchange frame frequency: ≥60Hz

Refresh rate: ≥350Hz

Grey grade: 1,204 levels

Protection rate: PI65

Control mode: synchronization

Operating voltage: 380V ± 10%

Power consumption: 800W/m² (maximum)

Operating environment temperature: -20 to 50°C

Screen lifespan: ≥100,000 hours

Blind DOT rate: below 0.0001

Computer operating system: Microsoft’s Windows 98, XP, 2000 and more

Video signal: RF, S-video, RGB, RGBHV, YUV and more

Control system: DVI graphics card, sending card and receiving card

PC display mode:

Software: LED studio

With RoHS, CE, FCC marks

Horizontal: 120°

Vertically: 55°

Software: LED studio
