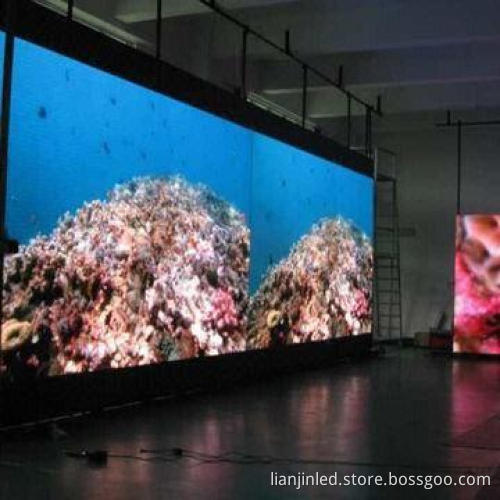

P16 LED Display/Screen/Sign with 15 to 140m Optimal Viewing Distance and 1R1G1B DIP

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Pixel pitch: 16mm

DIP: 1R1G1B

Pixel construction: 1 red chip, 1 green chip and 1 blue chip (1R1G1B)

Module resolution (L x H): 16 x 8mm = 128 pixel dots

Brightness of white: 7,500CD/m² at least

Optimal viewing distance: 15 to 140m

Grey scale: 10-bits/1,024-levels

Display color: 1,024 x 1,024 x 1,024 = 1 billion

Viewing angle(H/V): 100/45°

Refresh rate: 400Hz at least

Driving mode: static latch

Brightness adjustment: 0 to 100% with 8 levels automatic

Gamma correction: (-5.0 to 5.0)

Correction scale level: 16bits

Frame frequency: 60 to 85Hz

Color temperature: 5,000 to 9,300K (control by the software)

Input source support: S-video/VGA/DVI/SDI/HD-SDI

Lifetime: 100,000 hours at least

MTBF: 5,000 hours at least

Out of control rate: 3/10,000 at most
