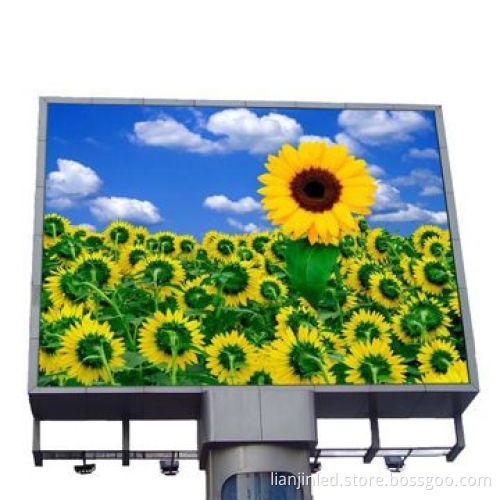

Outdoor LED Display with 20mm Pixel Pitch and 7,000cd/m² Brightness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Pixel pitch: 20mm

Pixel configuration: 2R1G1B

Brightness: 6,000 nits

Brightness: 7,000cd/m²

Color temperature: 9,500K

Module size: 320 x 160mm

Cabinet size: 1,280 x 960mm

IP protection: IP65

Optimum viewing distance: 15 to 300m

Viewing angle: 110/60°

Frames change frequency: greater than 60Hz/s

Refresh rate: >400Hz

Input power:

Constant drive: static constant current

Lifespan: 100,000 hours

MTBF: 5,000 hours

Gray scale/color: 14 bits

Working voltage: 220/110V ±15%

Malfunction dot rate: 0.0001

Brightness adjustment: manual R, G and B 256 levels each

Input voltages: 110 to 240V

Working environment temperatures: -20 to 60°C

Maximum: 800W/m²

Typical: 300W/m²
