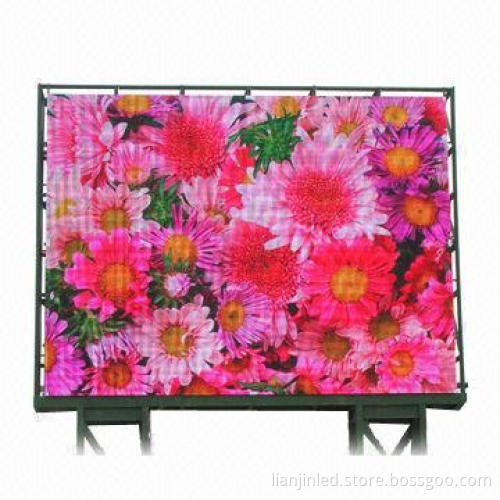

P20 LED Display/Screen/Sign with DIP 2R1G1B and Static Latch Driving Mode

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Pixel pitch: 20mm

Encapsulation: DIP 546

Module resolution (L x H): 16 x 8mm = 128 pixel dots

Pixel density: 2,500 pixel dots/sqm

Brightness of white: 6,500cd/sqm at least

The optimal viewing distance: 20 to 160m

Gray scale: 8-bit/256-level

Display color: 256 x 256 x 256 = 16 million

Viewing angle (H/V): 100/45 degrees

Refresh rate: 400Hz at least

Driving mode: static latch

Protection degrees: 65IP

Color temperature: 5,000 to 9,300K

Average power consumption: 300W/sqm

Maximum power consumption: 800W/sqm

Input source supported: S-video/VGA/DVI/SDI/HD-SDI

Lifespan: 100,000 hours at least

MTBF: 5,000 hours at least

Output of control rate: 3/10,000 at most

Working temperature: -20 to 60°C

Working humidity: 10 to 95% RH
