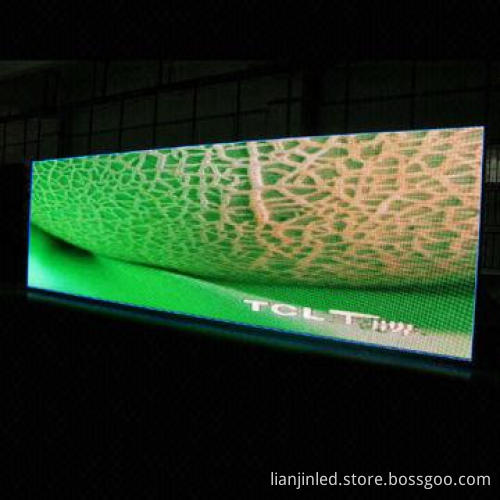

Outdoor LED Full Color RGB Video Display Board with 15 to 200m Optimum Viewing Distance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

LED display size: 4 x 8m

Brightness: up to 7,500 nits

Pixel composing: 2R1PG1B

LED specifications: DIP546, 5mm diameter and oval

Pixel resolution: 3,906 pixel dots/m²

Optimum viewing distance: 15 to 200 meters

Viewing angle:

Module dimension: 256 x 128mm

Module resolution: 16 x 8 pixel dots

Cabinet dimension: 1,024 x 768mm

Cabinet resolution: 64 x 48, 3,072 pixel dots

Working temperature: -20 to 60°C

Heat treatment: with fans inside

IP protection: IP65 (weatherproof)

Driving IC: 5020

Driving mode: constant current

Scanning way: static scanning

Brightness adjustment automatic and manual (by software)

Lifespan: ≥100,000 hours

MTBF: ≥5,000 hours

Power consumption:

Displaying colors 1,024 x 1,024 x 1,024 pixels

Signal interface DVI

Control system synchronous control system

Data communication optical fiber

Available signals RF, S-video, RGB, RGBHV, HDTV, DVD, camera, DVI and more

Horizontal: 110°

Vertical: 45°

Maximum: 1,200W/m²

Average: 500 to 1,000W/m²
