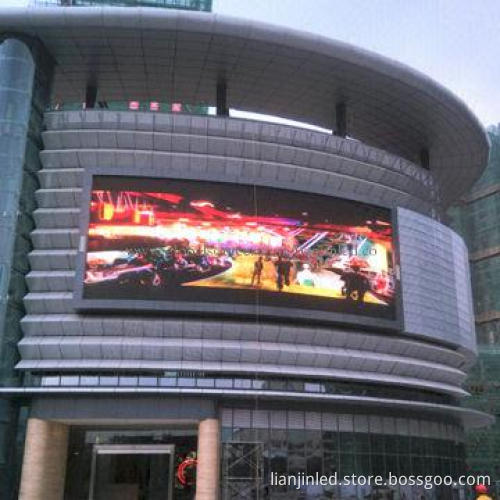

Irregular Shape Curve LED Screen Display with 1R/1G/1B DIP, High-brightness, Waterproof

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Pixel pitch: 10mm

Pixel construction: 1 red chip, 1 green chip and 1 blue chip (1R/1G/1B)

Module resolution (L x H): 16 x 16mm (256 pixel dots)

Brightness of white: 7,000cd/m² at least

Optimal viewing distance: 10 to 100m

Grayscale: 13 bits

Display colors: 1,024 x 1,024 x 1,024/1 billion

Viewing angle (H/V): 100/45°

Refresh rate: 400Hz at least

Driving mode: constant driving 1/2 scan

Brightness adjustment range: 0 to 100% with 8 levels automatic

Gamma correction range: -5.0 to 5.0mm

Correction scale level: 16 bits

Frame frequency range: 60 to 85Hz

Color temperature range: 5,000 to 9,300K (control by the software)

Input source supports: S-Video/VGA/DVI/SDI/HD-SDI

Lifespan: 100,000 hours at least

MTBF: 5,000 hours at least

Out of control rate: 3/10,000 at most
