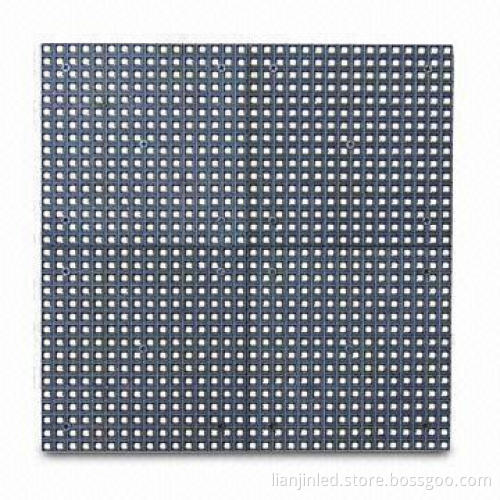

P4 LED Module with SMD 3-in-1, 3/10,000 Out of Control Rate and 1/16 Driving Mode Scan

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Pixel pitch: 4mm

SMD 3-in-1

Module resolution (L x H): 32 x 32 = 1,024 pixel dots

Gray scale: 10 bits/1,024 levels

Display color: 1,024 x 1,024 x 1,024 = 1 billion

Refresh rate: 180Hz (at least)

Driving mode: constant driving 1/16 scan

Out of control rate: 3/10,000

LED parameters:

Red:
- LED brightness: 200 to 250mcd
- Viewing angle: 150 (H) degrees
- Wavelength: 620 to 625nm
- Voltage condition: 25℃, 20mA
Green:
- LED brightness: 600 to 850mcd
- Viewing angle: 150 (H) degrees
- Wavelength: 520 to 522.5nm
- Voltage condition: 25℃, 20mA
Blue:
- LED brightness: 250 to 270mcd
- Viewing angle: 150 (H) degrees
- Wavelength: 467.5 to 470nm
- Voltage condition: 25℃, 20mA

Lifetime: 100,000 hours (at least)

MTBF: 5,000 hours (at least)
