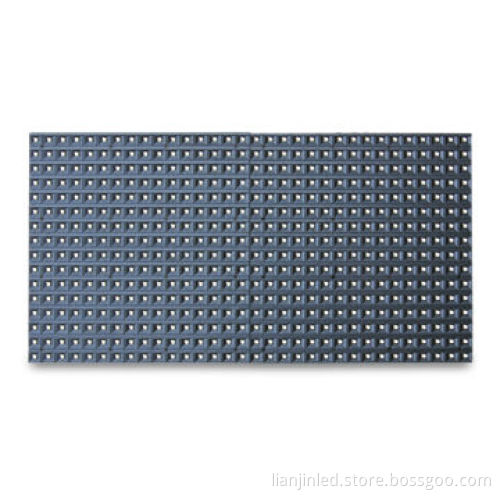

LED Module with SMD 3-in-1, 10mm Pixels Pitch 180Hz Refresh Rate and 100,000-hour Lifetime

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Pixel pitch: 10mm

SMD 3-in-1

Module resolution (L x H): 32 x 16mm = 512 pixels dots

Gray scale: 10-bit/1,024-level

Display color: 1,024 x 1,024 x 1,024 = 1 billion

Refresh rate: 180Hz (at least)

Driving mode: constant driving 1/8 scan

Lifetime: 100,000 hours (at least)

MTBF: 5,000 hours (at least)

Out of control rate: 3/10,000

LED parameters:

Red:
- LED brightness: 200 to 250mcd
- Viewing angle: 150 (H) degrees
- Wavelength: 620 to 625nm
- Temperature condition: 25, 20mA
Green:
- LED brightness: 600 to 850mcd
- Viewing angle: 150 (H) degrees
- Wavelength: 520 to 522.5nm
- Temperature condition: 25, 20mA
Blue:
- LED brightness: 250 to 270mcd
- Viewing angle: 150 (H) degrees
- Wavelength: 467.5 to 470nm
- Temperature condition: 25, 20mA

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.
