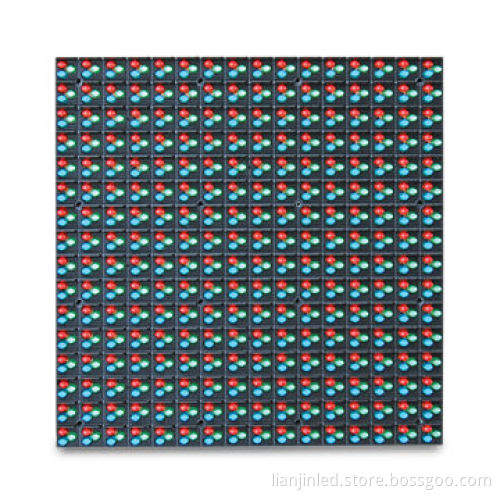

LED Module with DIP 1R1G1B, Recommended, Pixel Pitch of 10mm

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Pixel pitch: 10mm

DIP 1R1G1B

Module resolution (L x H): 16 x 16mm = 256 pixel dots

Grey scale: 10-bits/1,024-levels

Display color: 1,024 x 1,024 x 1024 = 1 billion

Refresh rate: 300Hz at least

Driving mode: constant driving 1/4 inches scan

Lifetime: 100,000 hours at least

MTBF: 5,000 hours at least

Out of control rate: 3/10,000

LED parameters:

Colors: red, green and blue
Brightness: 500 to 600mcd, 1,800 to 2,300mcd and 500 to600mcd
Viewing angle: 100 (H), 100 (H) and 100 (H)
Wavelength: 620 to 625nm, 520 to 522.5nm and 467.5 to470nm
Condition: 25, 20mA, 25, 20mA and 25, 20mA

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.

Colors: red, green and blue

Brightness: 500 to 600mcd, 1,800 to 2,300mcd and 500 to600mcd

Viewing angle: 100 (H), 100 (H) and 100 (H)

Wavelength: 620 to 625nm, 520 to 522.5nm and 467.5 to470nm

Condition: 25, 20mA, 25, 20mA and 25, 20mA
