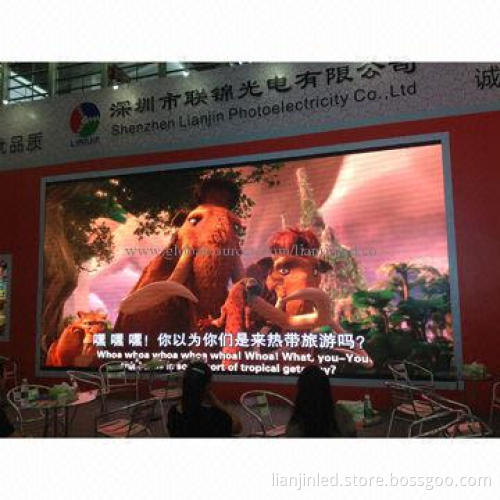

LED Display Screen with 7.62mm Pixel Pitch, 60 to 85Hz Frame Frequency Range

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Pixel pitch: 7.62mm

Pixel construction: one chip with 3 colors (3-in-1)

Module resolution (L x H): 32 x 16mm, 512 pixel dots

Brightness of white: 1,500cd/sqm at least

Optimal viewing distance: 5 to 38m

Grayscale: 10-bit/1,024 levels

Display colors: 1,024 x 1,024 x 1,024, one billion

Viewing angle (H/V): 150/120°

Refresh rate: 240Hz at least

Driving mode: constant driving 1/8 scan

Brightness adjustment range: 0 to 100% with 8 levels automatic

Gamma correction (-5.0 to 5.0)

Correction scale level: 16 bits

Frame frequency range: 60 to 85Hz

Color temperature range: 5,000 to 9,300K (controlled by the software)

Input source support: S-Video/VGA/DVI/SDI/HD-SDI

Lifespan: 100,000 hours at least

MTBF: 5,000 hours at least

Out of control rate: 3/10,000 at most
