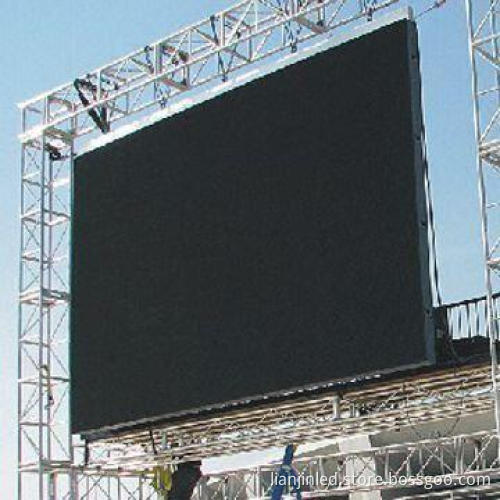

LED Electronic Full Color Billboard Display with 15 to 300m Best Viewing Distance

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Pixel density: 3,906 dots/m²

Pixel pitch: 16mm

Pixel composing: 2R1PG1B

White balance brightness: 8,500cd/m²

Color temperature: 5,000 to 9,300K (chosen by user in the software)

Brightness adjustment: 100 grades by software

Horizontal: 110°

Vertical: 50°

Best viewing distance: 15 to 300m

Computer wire: 100m

Optical fiber: 5,000m

Scanning method: static

Driving method: constant current

Driving IC: TB 5026 (Toshiba)

Gray grades: 1,024 levels for each color

Display color: 1,024 x 1,024 x 1,024

Refresh frequency: more than 400Hz

Picture display method: dots to dots display synchronized with CRT

Signal interface: DVI and VGA (can be customized)

Video: PAL/NTSC

Option: VGA, video, DVD, TV and others (the video processor can be customized)

Display format: 800 x 600, 1,024 x 768 and 1,280 x 1,024 pixels

Software: supports Microsoft Windows series system

Protection grade: IP65

Working temperature: -20 to 50°C

Humidity: 10 to 95% RH

Stored temperature: -50 to 70°C

Screen lifespan: ≥100,000 hours

Out of controlled dots: ≤3/10,000, out of controlled dots means the pixels of which the brightness and wave length are both 10% depart to the normal one

Whole display flatness: less than 1mm juncture

Maintenance way: back maintenance or front maintenance and module displaced

Switch power supply: 110/60 and 220V/50Hz

Power consumption:

Maximum: 1,300W
Average: 400 to 800W
