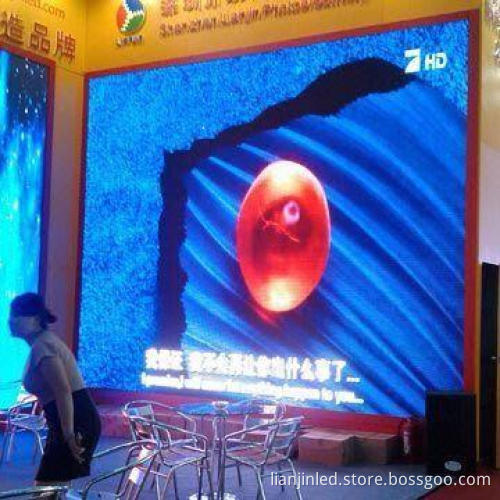

P10 LED Display/Screen/Sign with SMD 3-in-1, 240Hz Refresh Rate, 60 to 85Hz Frame Frequency

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Pixel pitch: 10mm

SMD 3-in-1

Pixel construction: one chip with 3 color (3-in-1)

Module resolution (L x H): 32 x 16 = 512 pixel dots

Brightness of white: 1,200cd/m² at least

The optimal viewing distance: 7 to 50m

Grey scale: 10-bit/1,024-level

Display color: 1,024 x 1,024 x 1,024 = 1 billion

Viewing angle (H/V): 150/120°

Refresh rate: 240Hz at least

Driving mode: constant driving 1/8 scan

Brightness adjustment: 0 to 100% with 8 levels automatic

Gamma correction: (-5.0 to 5.0)

Correction scale level: 16B

Frame frequency: 60 to 85Hz

Color temperature: 5,000 to 9,300K (control by the software)

Input source support: S-video/VGA/DVI/SDI/HD-SDI

Lifetime: 100,000 hours at least

MTBF: 5,000 hours at least

Out of control rate: 3/10,000 at most
