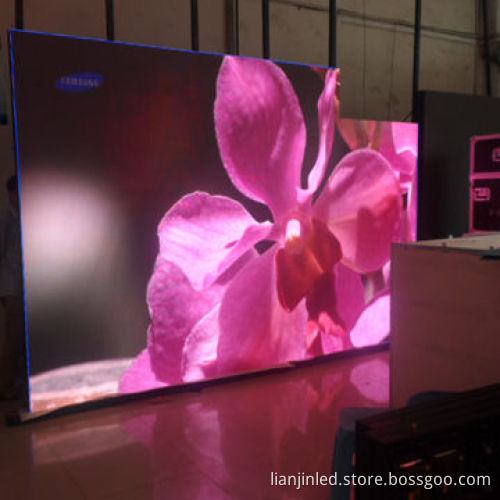

Super DH LED Sign with SMD 3-in-1, 64 x 32mm Resolution and 1R1G1B Pixel Configuration

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Pixel: 2.5mm

Resolution: 64 x 32 dots

Module dimensions: 160 x 80mm

Pixel configuration: 1R1G1B

Density: 160,000 dots/m²

Cabinet parameter:

Main technical parameter:

Dimensions: 480 x 480mm

Resolution: 192 x 192mm

Module quality: 3 x 6 pieces

LED standard: 0606 SMD

Best viewing distance: 1 to 15m

Best viewing angle:

Brightness: e1,300cd/m²

Drive mode: constant driving 1/16 scan

Refresh rate: e240Hz

Refresh frequency: e72Hz

Gray grade: e1,024 levels

Protection rate: e43

Control mode: synchronization

Working voltage: 220/380V AC ± 10%, 50Hz

Maximum power consumption: d1,200W/m²

Working environment temperature: -20 to 50°C

Screen lifespan: e100.000 hours

Blind dot rate: below 0.0001

Comes with CE, RoHS, FCC marks

Horizontal: 150°

Vertical: 120°
