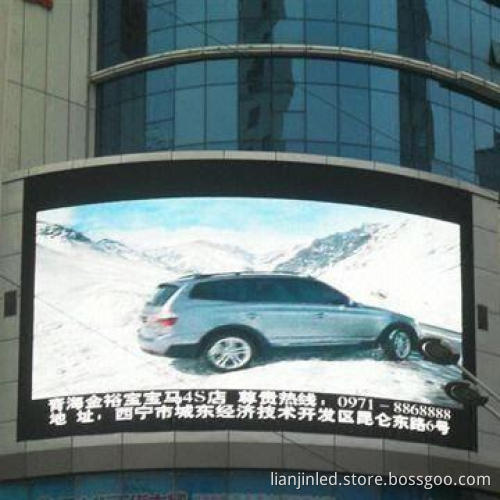

P12 LED Display/Screen/Sign with 2R1G1B DIP and 12mm Pixel Pitch

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Pixel pitch: 12mm

DIP: 2R1G1B

Pixel construction: 2 red chips, 1 green chip and 1 blue chip (2R1G1B)

Module resolution (L x H): 16 x 16mm/256 pixel dots

Brightness of white: 6,500cd/m² at least

Optimal viewing distance: 10 to 100m

Gray scale: 10 bits/1,024 levels

Display color: 1,024 x 1,024 x 1,024/1 billion

Viewing angle (H/V): 100/45 degrees

Refresh rate: 400Hz at least

Driving mode: constant driving 1/4 scan

Brightness adjustment: 0 to 100 % with 8 levels automatic

Gamma correction: -5.0 to 5.0

Correction scale level: 16 bits

Frame frequency: 70 to 80Hz

Color temperature: 5,000 to 9,300K (control by the software)

Supported input source: S-video/VGA/DVI/SDI/HD-SDI

Lifespan: 100,000 hours at least

MTBF: 5,000 hours at least

Out of control rate: 3/10,000 at most
