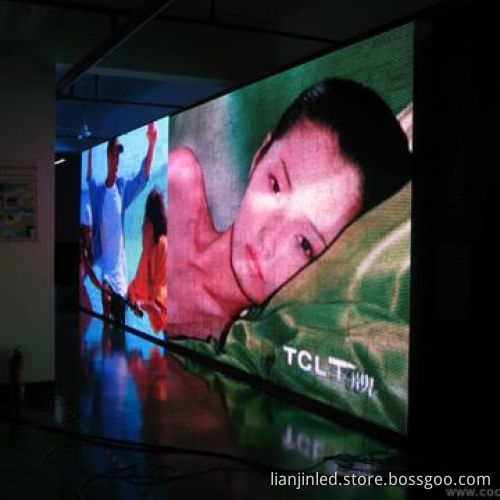

LED Display Sign with SMD 3-in-1, 7.62mm Pixel Pitch, 60 to 85Hz Frame Frequency

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specification:

Pixel pitch: 7.62mm

SMD 3-in-1

Pixel construction: one chip with 3 color (3-in-1)

Module resolution (L x H): 32 x 16mm = 512 pixel dots

Brightness of white: 1,500cd/sqm at least

The optimal viewing distance: 5 to 38m

Grey scale: 10-bit/1,024-level

Display color: 1,024 x 1,024 x 1,024 = 1 billion

Viewing angle:

Refresh rate: 240Hz at least

Driving mode: constant driving 1/8 scan

Brightness adjustment: 0 to 100% with 8 levels automatic

Gamma correction: -5.0 to 5.0

Correction scale level: 16bits

Frame frequency: 60 to 85Hz

Color temperature: 5,000 to 9,300K (control by thesoftware)

Input source support: S-video/VGA/DVI/SDI/HD-SDI

Lifetime: 100,000 hours at least

MTBF: 5,000 hours at least

Out of control rate: 3/10,000 at most

Horizontal: 150 degrees

Vertical: 120 degrees
