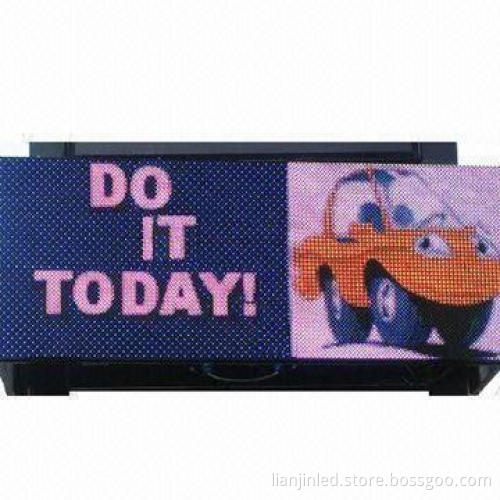

Stadium Display with 20mm Pixels Pitch, Made of Aluminum or Iron and 7000 Nits Brightness

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Pixel configuration: 2R1PG1B
Wavelengths:
- Red: 626 to 628nm
- Green: 518 to 520nm
- Blue: 466 to 468nm
Pixels pitch: 20mm
Brightness: 7000 nits
Module dimensions: 320 x 160 x 20mm
Module pixels: 16 x 8 dots resolution
Unit box dimensions (L x H x W): 1,280 x 960 x 180mm
Unit box pixels: 64 x 48-dot resolution
Unit box material: aluminum or iron
Pixel density: 2,500-dot/m²
White balance brightness: ≥5,500cd/m²
Color temperature: 5,000 to 9,500K
Viewing angle:
- Horizontal: 110°
- Vertical: 70°
Best viewing distance: 20 to 300m
Screen work method: static
Picture display method: dots to dots display synchronized with CRT
Signal interface: DVI
Supports Microsoft's Windows series
Control distance:
- Internet wire: ≤100m
- Multiple mode optical fiber: Single-mode optical fiber:
- Protection grade: IP65
- Working temperature: -10 to +50°C
- Humidity range: up to 95% RH
- Storage temperature: -30 to +70°C
All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.

Pixel configuration: 2R1PG1B

Wavelengths:

Red: 626 to 628nm
Green: 518 to 520nm
Blue: 466 to 468nm

Pixels pitch: 20mm

Brightness: 7000 nits

Module dimensions: 320 x 160 x 20mm

Module pixels: 16 x 8 dots resolution

Unit box dimensions (L x H x W): 1,280 x 960 x 180mm

Unit box pixels: 64 x 48-dot resolution

Unit box material: aluminum or iron

Pixel density: 2,500-dot/m²

White balance brightness: ≥5,500cd/m²

Color temperature: 5,000 to 9,500K

Viewing angle:

Horizontal: 110°
Vertical: 70°

Best viewing distance: 20 to 300m

Screen work method: static

Picture display method: dots to dots display synchronized with CRT

Signal interface: DVI

Supports Microsoft's Windows series

Control distance:

Internet wire: ≤100m
Multiple mode optical fiber: Single-mode optical fiber:
Protection grade: IP65
Working temperature: -10 to +50°C
Humidity range: up to 95% RH
Storage temperature: -30 to +70°C

All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.

Red: 626 to 628nm

Green: 518 to 520nm

Blue: 466 to 468nm

Horizontal: 110°

Vertical: 70°

Internet wire: ≤100m

Multiple mode optical fiber: Single-mode optical fiber:

Protection grade: IP65

Working temperature: -10 to +50°C

Humidity range: up to 95% RH

Storage temperature: -30 to +70°C
