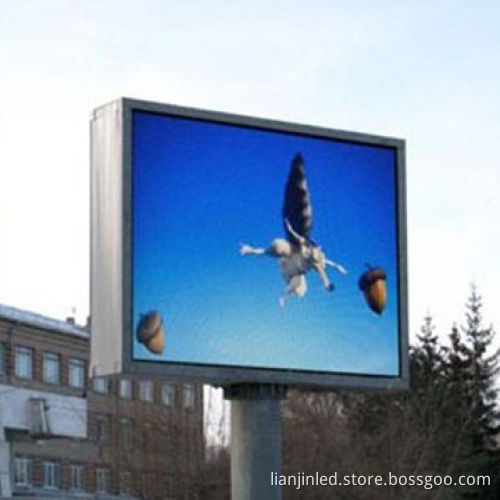

Outdoor LED Display with Pixel Pitch of 10mm and Pixel Resolution of 10,000 Pixels

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Pixel pitch: 10mm

Brightness: e7,000cd/m

Pixel composing: 1 (R), 1(PG) and 1 (B)

LED specifications: DIP-346/3mm (diameter and oval)

Pixel resolution: 10,000 pixels

Best viewing distance: 10 to 150m

Viewing angle:

Horizontal: 110°
Vertical: 45°

Module dimension (W x H): 160 x 160mm

Module resolution (W x H): 16 x 16 pixels

Cabinet dimension (W x H): 1,280 x 960mm

Cabinet resolution (W x H): 128 x 96 = 12,288 pixels

Working temperatures: -20 to + 60°C

Heat treatment with fans inside

IP protection: IP65 (weatherproof)

Driving IC: 5020

Driving mode: constant current

Scanning way: 1/4

Brightness adjustment: automatic and manual (by software)

Lifespan: e100,000 hours

MTBF: e5,000 hours

Power consumption

Maximum: 800W
Average: 300W

Display color: 1,024 x 1,024 x 1,024 pixels

Signal interface: DVI

Control system: synchronous control system

Data communication: optical fiber

Available signals: RF, S-video, RGB, RGBHV, HDTV, DVD, cameraand DVI

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.

Horizontal: 110°

Vertical: 45°

Maximum: 800W

Average: 300W
