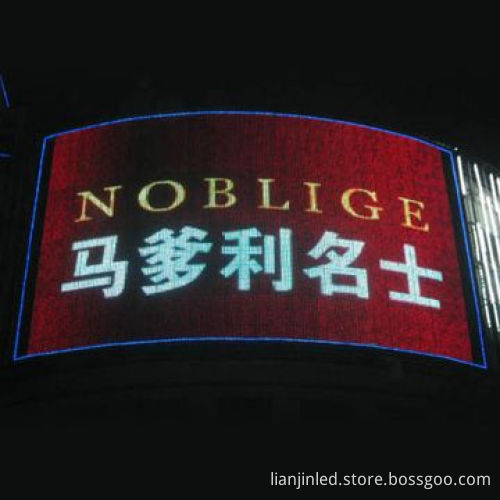

P20 LED Display/Screen with DIP 2R1G1B, 20mm Pixel Pitch, 70 to 80Hz Frame Frequency

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Pixel pitch: 20mm

DIP 2R1G1B

Pixel construction: two red chips, one green chip and one bluechip (2R1G1B)

Module resolution (L x H): 16 x 8mm = 128 pixel dots

Brightness of white: 6,500CD/sq.m at least

The optimal viewing distance: 20 to 160m

Grey scale: 10 bits/1,024 levels

Display color: 1,024 x 1,024 x 1024 = 1 billion

Viewing angle(H/V): 100/45 degrees

Refresh rate: 400Hz at least

Driving mode: static latch

Brightness adjustment: 0 to 100% with eight levelsautomatic

Gamma correction: (-5.0 to 5.0)

Correction scale level: 16 bits

Frame frequency: 70 to 80Hz

Color temperature: 5,000 to 9,300K (control by thesoftware)

Input source support: S-video/VGA/DVI/SDI/HD-SDI

Lifetime: 100,000 hours at least

MTBF: 5,000 hours at least

Out of control rate: 3/10,000 at most

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.
