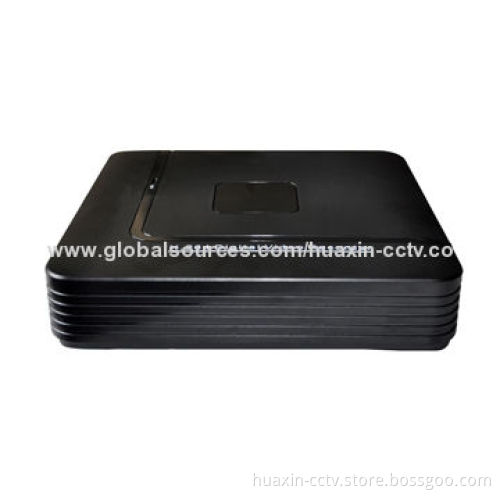

Standalone DVRs with 4-channel Video Output, Multi-language OSD Menu and BNC/VGA Output
  • Standalone DVRs with 4-channel Video Output, Multi-language OSD Menu and BNC/VGA Output
  • Standalone DVRs with 4-channel Video Output, Multi-language OSD Menu and BNC/VGA Output
Standalone DVRs with 4-channel Video Output, Multi-language OSD Menu and BNC/VGA Output
Standalone DVRs with 4-channel Video Output, Multi-language OSD Menu and BNC/VGA Output

Standalone DVRs with 4-channel Video Output, Multi-language OSD Menu and BNC/VGA Output

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Model: J-1008V/HV
  • System:
    1. Main processor: technical grade embedded microprocessor HI 3520D
    2. Operating system: embedded Linux operating system
    3. System resource: multichannel real-time recording synchronously, multichannel real-time
    4. Playback, multichannel multi-user network operation, USB back up
  • Interface:
    1. Operating interface: 16 bit real color GUI interface support mouse operation
    2. Display screen: 1/4 screen (take analog channel as an example, other is base on the selected channel mode)
  • Video:
    1. Video standard: PAL (625 lines, 50fps), NTSC（525 lines, 60fps)
    2. Image encode: H.264 (high profile)
    3. Monitor quality:
      • Monitor: D1, VGA,
      • HDMI: high-definition (support 1280*720, 1440*900, 1280*1024, 1024*768, 800*600)
    4. Playback quality: D1/HD1/CIF
    5. Encode capability: 2D1 + 6CIF real-time
    6. Decode capability: 2D1 + 6CIF real-time
    7. Motion detection: each channel can set 192 (16*12) detection area, can set multilevel of flexibility (for local analog channel only)
  • Audio:
    1. Audio compression: G711A
    2. Bidirectional talk: support
    3. Record and playback:
    4. Record mode: manual, alarm, motion detection and timing
    5. Local playback: 1-4ch playback synchronously
    6. Video search: time, date, event, channel search
  • Storage and back up:
    1. Space occupation:
      • Video: CIF 4-5G/day*channel, D1 16-20G/day*channel
      • Audio: 691.2M/day*channel
    2. Video storage: local HDD, network
    3. Back up mode: network backup, USB portable HDD, USB imprint, SATA imprint
  • Interface:
    1. Video input: 8ch CVBS/BNC (1.0Vp-p,75Ω)
    2. Video output: 1ch CVBS/BNC (1.0Vp-p,75Ω), 1ch VGA, 1ch HDMI
    3. Audio input: 1ch RCA (200-2800mV, 30KΩ)
    4. Audio input: 1ch RCA (200-3000mV, 5KΩ)
    5. Network port: RJ45 10M/100M self-adaptive Ethernet port
    6. USB port: 2*USB2.0
    7. HDD port: 1 SATA ports (each maximum to 4TB)
  • Other:
    1. Power: 12V/2A
    2. Consumption : <15W (not including HDD)
    3. Temperature: 0-55°C
    4. Humidity: 10-90%
    5. Atmosphere pressure: 86kPa-106kPa
    6. Dimensions: (L)210*(W)190*(H)43mm
    7. Weight: 0.1kg
  • Monitor: D1, VGA,
  • HDMI: high-definition (support 1280*720, 1440*900, 1280*1024, 1024*768, 800*600)
  • Video: CIF 4-5G/day*channel, D1 16-20G/day*channel
  • Audio: 691.2M/day*channel
